Six Inch Diameter Three Jaw Chuck
September 1, 2016

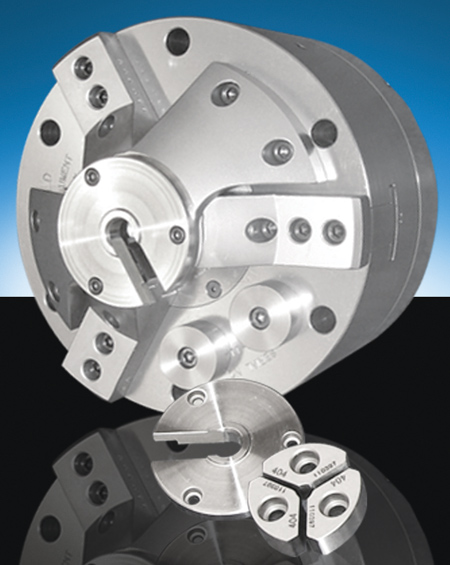

Northfield Precision Instrument Corporation has introduced its Model 620 chuck. This 6" diameter three-jaw chuck has a 1" diameter counterbore (hidden), with special sub-jaws, inserts and side loading base stop and stop pad.
Due to the part geometry, it had to be side loaded between the jaws and needed to rest on the small boss at the end of the slot. Two weights were added to balance the chuck. Changeable insert stop pads repeat to 1/10,000 TIR when removed and re-installed.
For more information contact:
Northfield Precision Instrument Corp.
P.O. Box 550
Island Park, NY 11558-0550
800-810-2482 / 516-431-1112
info@northfield.com
www.northfield.com
