Two-Dimensional Measurement of Parts

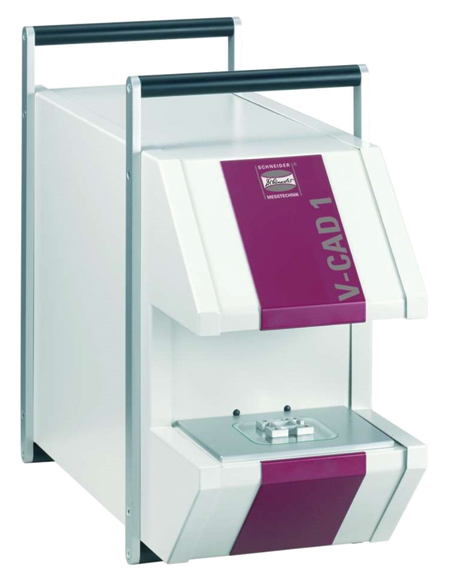

Titan Tool Supply, Inc. has introduced its second optical measuring device. Developed in Germany by Schneider Messtechnik, the V-CAD 1 is capable of providing precise and fast measurements of parts up to 76 mm x 63 mm in size.

"The V-CAD 1's high resolution optical equipment ensures distortion-free measurement with excellent depth of field over the entire calibrated measuring range. This enables measurement of workpieces up to 60 mm in height. The 2-D measurements are fully displayed in one window image," said a company spokesperson.

Features of the V-CAD 1 include: large fields of view; no axis movement to cause wear and tear; high resolution camera with high-precision telecentric lenses; and a distortion-free calibrated measurement range. An LED incident light source is optionally available.

A software tool enables measurement of several identical and different parts in a single operation. "Measurement with the SAPHIR QD software is relatively easy since the parts are placed on V-CAD 1's glass plate without the need for any tedious manual alignment," said the spokesperson.

For more information contact:

Frank Menza, President

Titan Tool Supply, Inc.

68 Comet Ave.

Buffalo, NY 14216

716-873-9907

info@titantoolsupply.com

www.titantoolsupply.com
