Rotary Stage Collet Closer
September 1, 2016

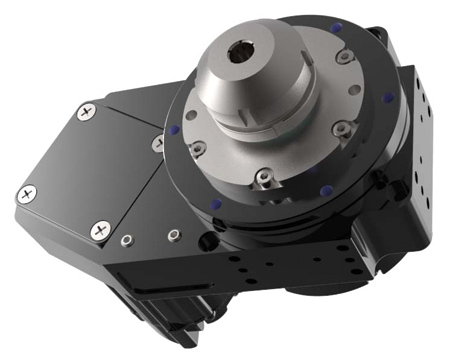

Bell-Everman Inc. has developed a compact, air-driven collet closer that can precisely secure cylindrical goods in the company's rotary stages. The collet closer helps to solve a common workholding problem in inspection, metrology and laser engraving applications.
This new collet closer squeezes into through-hole openings as small as 15 mm and extends just 42 mm from the face of the stage. The initial offering, the ER-16 collet closer, can handle cylinders with diameters from 1 to 10 mm.
The collet closer has the ability to close without changing the workpiece's axial position. It also offers the ability to customize the opening and clamping behavior. The same air cylinder that closes the collet can be set to open it, making it easy to set it up as a spring-close, air-open device. The collet closer can optionally be integrated with a single-axis controller to handle indexing tasks and process fourth-axis motion commands for contouring.
For more information contact:
Bell-Everman, Inc.
82 Aero Camino
Goleta, CA 93117
805-685-1029
sales@bell-everman.com
www.bell-everman.com
