Modular Welding Workcell

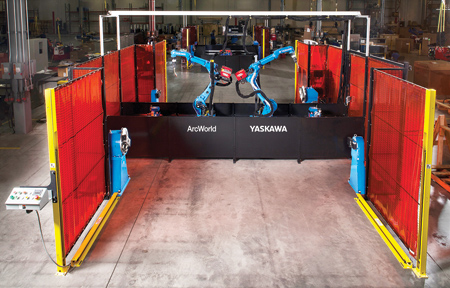

The ArcWorld 2000 welding workcell is a modular solution specifically designed for robotic welding of large workpieces. This flexible, pre-engineered solution is built for low- to medium-volume manufacturers with a medium to high mix of parts. Able to handle parts up to 5 m in width and payloads up to 6,300 kg, the ArcWorld 2000 is suitable for labor intensive jobs involving large parts or heavy deposition welding. The workcell is configured with one or two 6-axis Yaskawa welding robots directed by the DX200 controller with menu-driven arc welding application software, an integrated welding package (power source, wire feeder and welding torch), positioner(s), operator interface and safety barriers.

The ArcWorld 2000 can scale easily from a single-station layout with a reduced floorspace footprint to a two-robot dual station configuration that makes it adaptable to changing production demands. Two station layouts can be configured with a "blank station," allowing end user supplied equipment to be installed, and each station can have a different positioner. In dual robot installations, the second robot controller can be a reduced cost, dual-robot control type module (DRC).

"Multiple positioner and robot options combine to deliver a modular solution for manufacturers of heavy transportation, agriculture and construction equipment," said a company spokesperson. For maximum welding reach, the ArcWorld 2000 can be configured with two Yaskawa MA3120 robots. Additional welding robot options include the MA1440 and MA2010 models.

The ArcWorld 2000 uses the DX200 controller's Functional Safety Unit (FSU) features as part of the total safety environment, which allows continuous station welding during part loading/unloading. Light curtains protect access to positions at either station. Peripherals such as torch cleaners or tip-changing stations are installed in a fenced center zone to allow operator access to stations while robot maintenance functions are performed. Cable management is accomplished via a fence mounted wire way that provides protection while safely keeping cables off of the floor, eliminating trip hazards.

A MotoMount fixture mounting system can be included to eliminate the need for laser or transit alignment procedures, allowing for fast positioner set-up and improved equipment life.

For more information contact:

Yaskawa America, Inc.

Motoman Robotics Division

100 Automation Way

Miamisburg, OH 45342

937-847-6200

www.motoman.com
