Electronic Gauging Probes and Displays

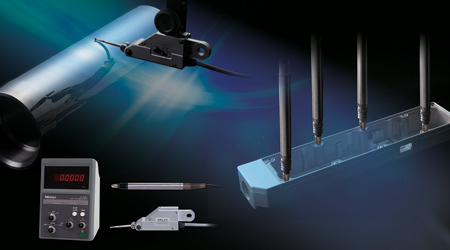

Mitutoyo America Corporation has introduced the 519 Series of high-accuracy Mu-Checker probes and displays. These electronic gauging systems are suitable for a range of applications from the inspection room to production line integration.

High-resolution lever-head probes allow multi-point measurements of small parts, flatness and straightness measurement on X/Y table, as well as runout measurement of shafts. The cartridge-head type is easily built into equipment due to its slim and compact shape, making it optimal for an automatic measuring machine. Probes are offered with a standard measuring force of 0.2 N or a low measuring force of 0.02 N. The low-force style enables soft workpieces to be measured without significant deformation. Optional styli, extension rods and brackets are available.

Both digital and analog display models offer zero setting with the touch of a button. Additional models allow for multi-probe measuring systems.

For more information contact:

Mitutoyo America Corporation

965 Corporate Blvd.

Aurora, IL 60502

888-648-8869 / 630-820-9666

info@mitutoyo.com

www.mitutoyo.com
