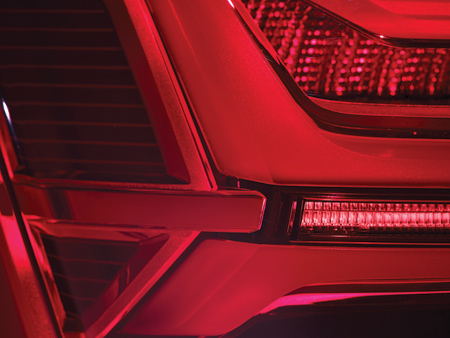

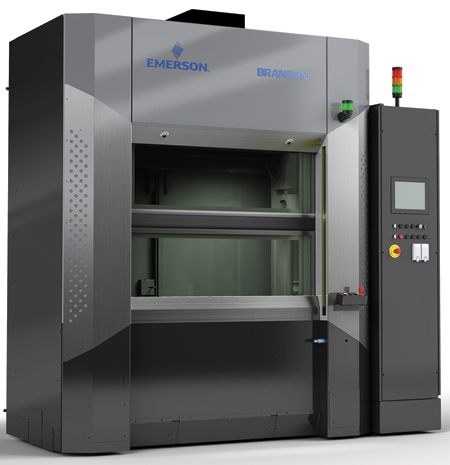

The new GLX-3 laser welders from Branson Ultrasonics, a business of Emerson, are engineered to deliver clean, high speed laser welding of large-format plastic parts with more complex geometries to meet the growing needs of automotive, appliance, medical, filtration and other applications that require particulate-free welds with high aesthetic quality.
The GLX-3 laser welder incorporates advanced features, including Branson's patented Simultaneous Thru-Transmission Infrared (STTIr) process, which heats, melts and joins the entire weld line of two or more parts simultaneously. "Compared to scan or trace laser welding processes, which must travel the entire length of the weld line to accomplish heating, Branson's STTIr results in a significantly faster weld cycle on large parts and more precise melt of the weld line," said a company spokesperson.
"Due to this innovation, the GLX-3 laser welder can now deliver cycle times as fast as 0.5 to 5 seconds on weld lines of 2.0 meters nominally, depending on part material and geometric complexity - faster than trace laser welders of comparable capacity," continued the spokesperson. Throughput speed is increased further with automatic tool changes, which typically can be performed in under five minutes. STTIr technology enables precision welders to accommodate variable weld widths, delivering weld depths of 1.0 mm or more, yet holding tight tolerances on weld depths as shallow as 0.05 mm or less.
The GLX-3 welder is designed for large-format parts that require greater laser and clamping power. It offers an expansive (1,333 mm x 600 mm) high-speed, servo-driven lift table with a high overhead clearance capable of accommodating single- or multi-cavity tooling with combined weights (upper and lower) of up to 500 kg. The GLX-3 offers four levels of laser power (1,250 W, 1,500 W, 1,750 W and a maximum 2,000 W), a wider range of clamping force (1-25 kN) plus closed-loop clamp force control to meet demanding parts welding requirements.
The GLX-3 is designed for easy use and features a 12" color human-machine interface (HMI) screen based on a common global IPC architecture that simplifies training, set-up, adjustment and diagnostics. The HMI software can accommodate up to 99 different users with configurable access rights and password-protected logins. Both welders are housed in compact Class 1 laser-safe enclosures that meet CE, ISO and ANSI norms, with twin front doors that contain 3.5 mm thick laser-safe glass for process viewing. Machine functions and safeties are managed by a dedicated safety PLC running Branson's advanced Logic Control System, which automatically synchronizes door, lift-table and tooling activities to minimize weld cycle times while maintaining process safety. Process cooling for the GLX-3 welder is provided by integral chillers that are linked to roof-mounted heat exchanger-dehumidification units.
For more information contact:
Branson Ultrasonics Corporation
41 Eagle Rd.
Danbury, CT 06813
800-732-9262
info@bransonultrasonics.com
www.bransonultrasonics.com
