Tailstocks for Heavy Duty Work and Tombstone Support
September 1, 2016

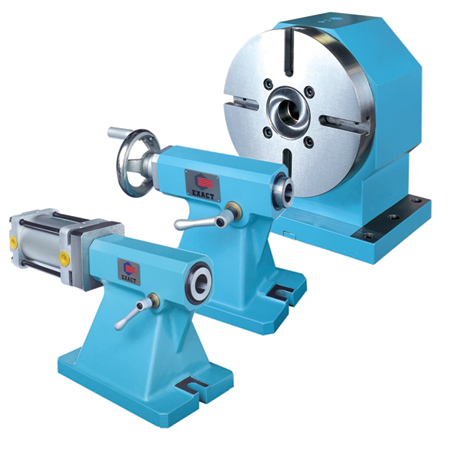

The ITI-Exact MTS, ATS and BTS tailstocks from Indexing Technologies Inc. have been designed to accommodate many of Indexing Technologies non-lifting indexing and NC rotary tables when heavy and/or long piece parts are being machined.
Tailstocks from the MTS and ATS Series are typically used when machining long slender piece parts on a machining center, milling or grinding machine. The MTS models are actuated via an operator rotating the hand wheel until the required pressure is reached, while the ATS has an air or hydraulic cylinder attached, providing more automated operation.
The heavy-duty BTS Series is fitted with a hydraulic distortion-free brake assembly, which is actuated after rotation is completed; this helps to ensure rigidity and accommodates high-cutting loads on the piece parts. This series is also used for heavy loads when several tables are fabricated together to attain a 2-axis rotary-tilting table assembly.
The BTS Series can also be incorporated into the design of multi-sided tombstone fixturing for machining centers.
For more information contact:
Indexing Technologies Inc.
37 Orchard Street
Ramsey, NJ 07446
201-934-6333
info@indexingtechnologies.com
www.indexingtechnologies.com
