Welding Torch with Integrated Weld Fume Extraction



Translas has introduced the EXTRACTOR, a new welding torch with integrated weld fume extraction. "The EXTRACTOR reduces fumes by a factor of 20, in comparison with the existing generation of fume extraction torches that achieve a smoke reduction factor of two," said a company spokesperson. "Using the EXTRACTOR reduces the concentration of smoke fume in the workspace to a level under the current legal limit for welding fumes: 1 milligram/cubic meter during the day." The EXTRACTOR can be used for all MIG/MAG welding processes where shielding gas is used.

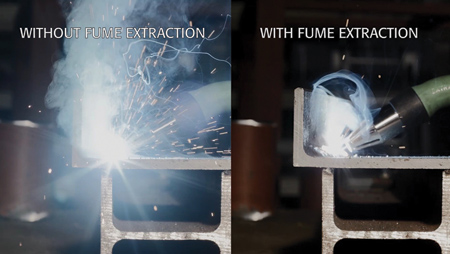

The Extractor has been tested by TNO in a worst-case room and found it reduces the weld fumes 90-95% in different welding positions.

To get rid of more than 90% of the particles and welding fumes right at the source, the EXTRACTOR has a conical suction head and suction openings through which the welding fumes are extracted. The conical shape of the suction head allows the shielding gas to flow at a higher rate and reach the weld pool without being sucked away, providing a high quality weld. The conical shape also provides an optimal view on the weld pool and accessibility to the workpiece.

The weld fume is extracted through a suction hose that is connected to an optional vacuum unit (minimum capacity of 50-60 cubic meters per hour) with constant flow control and a self-cleaning filtering system.

For more information contact:

RoboVent

37900 Mound Rd.

Sterling Heights, MI 48310

888-762-6836

www.robovent.com
