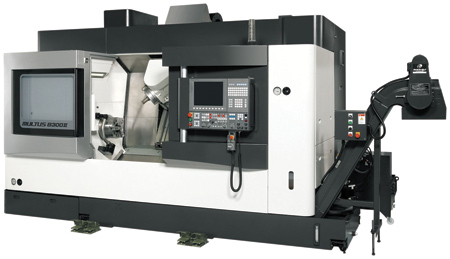

The MULTUS B300II is a one-saddle multitasking CNC lathe designed to reduce set-up time and machining costs. This multitasking machine offers a variety of operations to improve machining efficiency while offering reliable accuracy and power to keep non-cutting time to a minimum. It is built for machining process-intensive parts, such as those in aerospace, automotive, oil/energy, medical and construction industries. At IMTS 2016 this machine will showcase efficiency by providing an automated quick change demonstration.
It features a compact design and a rigid bed and guideway system to provide powerful, stable machining. The optional W version with sub-spindle enables a part to be handed from one spindle to the other, allowing complex parts to be machined on both ends without operator invention. Standard collision avoidance helps to reduce operator mistakes in manual, MDI and auto modes. To further enhance efficiency, the base offering has a 40-tool automatic tool changer (ATC), with an optional 60-tool ATC available.
Features of the MULTUS B300II include:
- 225° B-axis range with 6,000 RPM H1-milling spindle with dual function (L/M)
- H1 dual function spindle head utilizes CAPTO-C6 tooling and has a 15/10 HP PREX milling motor spindle (opt: 10,000 RPM - 21/15 HP)
- H1 turret has a 0.001° B-axis and compound motion Y-axis for machining flexibility
- Main spindle is equipped with a full contouring C-axis.
"This multitasking machine is designed with ease of operation in mind and equipped with Okuma's OSP-P300S control. With single-mode operation and enhanced graphics, novice operators as well as professional machinists will experience a smoother, more effective way of producing parts," said a company spokesperson.
For more information contact:
Okuma America Corporation
11900 Westhall Drive
Charlotte, NC 28278
704-588-7000
www.okuma.com
IMTS 2016 Booth S-8500
