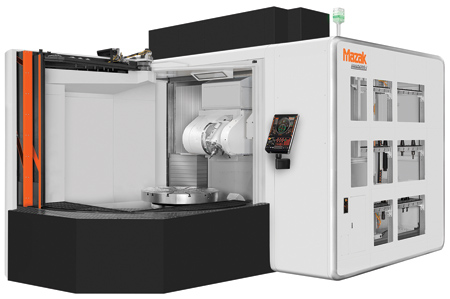

The Mazak INTEGREX e-1600V/10S blends full 5-axis machining with vertical turning operations to produce large complex parts from aluminum, steel and high-temperature alloy workpieces in single set-ups. It is also among the first Mazak multitasking machines to feature SMOOTH TECHNOLOGY and the new MAZATROL SmoothX CNC.
Through the SMOOTH TECHNOLOGY process-performance platform, the INTEGREX e-1600V/10S offers enhanced speed, functionality and ease of use during production. Key elements of the platform are optimized CNC programming, new hardware, the latest in high-speed servo systems and improved ergonomics.
The INTEGREX e-1600V/10S achieves heavy-duty 5-axis machining via a 300 RPM, 54 HP direct-drive C-axis turning table and 10,000 RPM, 50 HP milling spindle with a B-axis tilt of -30/+120°. This advanced multitasking functionality, together with a maximum workpiece capacity of 90.5" in diameter and 63" in height, makes the machine suitable for the energy and jet engine industry sectors.
Available in tool storage capacities of 42, 84, 120 or 160 tools, the INTEGREX e-1600V/10S's automatic tool changer is situated on the right side of the machine to save space and position it closer to the spindle for fast tool changes. This high-speed rack-type tool magazine is expandable after initial machine installation.
Axis travels on the INTEGREX e-1600V/10S measure 85.24" in X, 62.99" in Y and 52.95" in Z. The axes incorporate the Mazak MX Hybrid Roller Guide System that is designed to increase vibration damping, handle high load capacities and eliminate tramp oil in the coolant by utilizing a greener grease-based lubrication system.
"The MAZATROL SmoothX CNC makes it easy to generate programs for highly complex parts production on the INTEGREX e-1600V/10S," said a company spokesperson. "The CNC has several advanced functions that allow it to ensure the shortest possible machining cycle times, especially in fine increment programs for simultaneous 5-axis operations and free-form die/mold machining. Among its functions are Super High-Speed Mode for maximum interpolation capabilities, rotary axis speeds for fast gear skiving operations and rotary axis threading, Smooth Corner Control for shorter cycle times and Real Time Tuning for optimal machining balance."
Ergonomics play an important role in the functionality of the MAZATROL SmoothX CNC. A large 19" display presents all of the critical machine data within a single page view, while the tilt control panel allows for optimum positioning based on operator height. An intuitive multi-touch screen, which is similar to that of a smartphone, enables fast and smooth programming operations. An SD card allows the CNC to store up to 32 GB of data.
