Fully Automated Workholding Changeover Capabilities

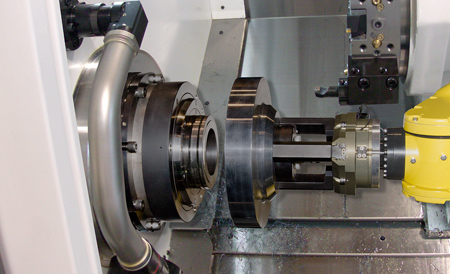

Positrol's Automation Chuck Change System enables an industrial robot to fully automate workholding changeovers. This is accomplished without the need for indicating in the chuck before beginning machining operations. The Automation Chuck Change System is designed to provide a quick-change solution for not only chuck mounting, but also includes support for a power actuated drawbar as well without sacrificing rigidity. When paired with a robot, it operates as a fully automated cell where the robot not only loads and unloads parts but performs complete workholding changeovers without manual intervention. Through implementation of quick connects for both the chuck and drawbar, multiple operations can be run across the same spindle.

Positrol's Automation Chuck Change System can be installed on lathes, mills, balancers and gear equipment. It accommodates any drawbar and most common machine spindle sizes. Repeatability accuracy for the X, Y, and Z axes are within .0001" TIR and an angular repeatability within ±3 arc seconds. Sealed to account for chips and other contamination, Positrol's Automation Chuck Change offers low maintenance, faster changeovers and fully automated machining capabilities.

Positrol offers a wide array of chuck and arbor designs to allow for flexibility in tailoring a workholding solution to help maximize machining efficiencies and workpiece accuracies. Positrol specializes in providing both standard and custom solutions for turning, grinding, milling, balancing and gear operations.

Positrol's complete product line includes:

• Pos-A-Lock Collet Arbors
• Chuck Change Systems
• Hydraulic Membrane Chucks and Arbors
• Cartridge Chucks and Arbors
• Drawdown Chucks
• Split Diaphragm Chucks
• Swing Arm Chucks
• Swivel-Grip Chucks
• Superior Cincinnati Collet Pads and Chuck.

For more information contact:

Positrol, Inc.

3890 Virginia Ave

Cincinnati, OH 45227

513-272-0500

Sales@Positrol.com

www.positrol.com

IMTS 2018 Level 3, Booth W-431201
