Compact Horizontal Machining Center

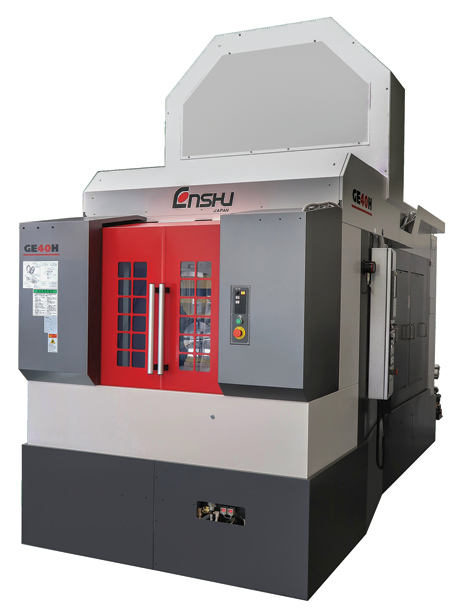

Enshu USA will introduce the GE40H horizontal machining center. Compact and nimble, the GE40H is suitable for secondary operations and die cast processing. Although, with its standard ram-type 33.5 HP 12,000 RPM Big Plus/CAT40 taper spindle, it has enough power to take on jobs usually done on much larger machines.

The 500 mm (19.7") axis travels (X, Y, Z) plus a full 4th (B) axis, give the GE40H flexibility for small to mid-size parts machining. The GE40H arrives ready to achieve high production volumes with standard features such as a FANUC 31iMB Control, 400 mm pallets, rotary automatic pallet changer and a 40-tool capacity magazine.

With dimensions of 180" x 112" x 139", the GE40H can be used as a standalone machine or as multiples in a lean line production environment. This allows customers with limited floor space to maximize their productivity and output.

For more information contact:

Mike Germann

National Sales Manager

Enshu USA Corporation

404 E. State Parkway

Schaumburg, IL 60173

847-839-8105

mgermann@enshuusa.com

www.enshuusa.com

IMTS 2018 Level 3, Booth S-338592
