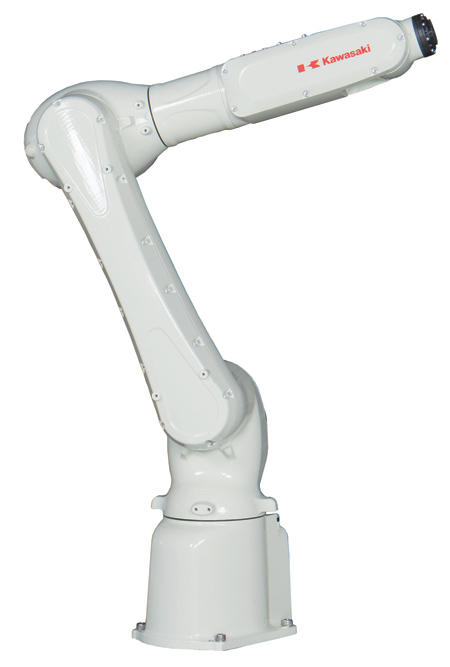

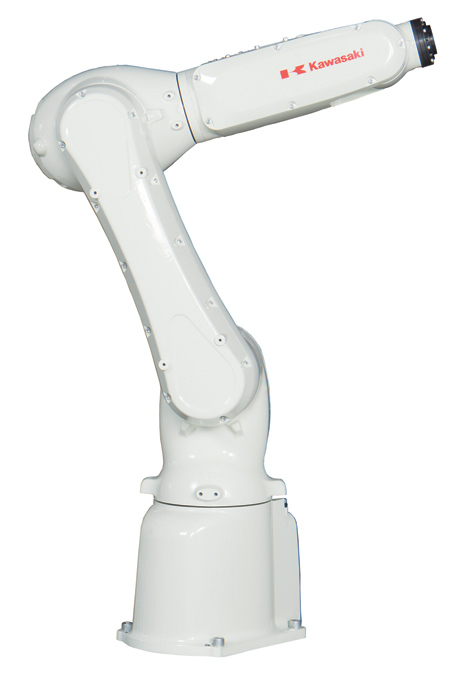

Kawasaki has developed two 6-axis vertically articulated robots with a maximum payload capacity of 7 kg and different reach. The RS007N and RS007L models are the latest additions to the company general-purpose R series line of small-to-medium payload (3-80 kg) robots, which offers enhanced functional and environmental performance for assembly, material handling, machine tending and other applications.
Both the Kawasaki RS007N and RS007L robots continue to offer the operational advantages of the R series robots while incorporating a newly redesigned arm structure and main-unit weight reductions. "These enhancements result in the fastest operating speeds in these robots' class (12,100 mm/s) along with increased working ranges. By redesigning the arm structure and adjusting the acceleration rates in accordance with load weights and robot positioning, these models also offer consistently optimized performance by reducing cycle times," said a company spokesperson.
The RS007N robot features a 730 mm reach and the RS007L a 930 mm reach for greater flexibility in production facility layouts. By utilizing a cantilever design for the upper arm section, Kawasaki has achieved a longer maximum reach and an expanded range of motion: below, behind and in the immediate vicinity of the robot. Additionally, these floor or ceiling mount models are designed to house vision cables, sensor harnesses, air lines and other components inside the arm structure. This prevents interference with and from peripheral equipment, thus allowing for operation in tight installation spaces.
The RS007N and RS007L robots feature a double-seal construction on all axes and waterproof electrical connections, offering an IP67 classification for the wrist and IP65 for the remaining axes. This environmental protection means the robots are protected against large quantities of dust, water, lubricants, coolants, and can even withstand high surface temperatures and temporary submersion.
With the release of these latest models, Kawasaki is able to respond to the needs of the small payload (10 kg or less) robot market with greater precision.
For more information contact:
Kawasaki Robotics (USA), Inc.
28140 Lakeview Drive
Wixom, MI 48393
248-446-4100
info@kri-us.com
www.kawasakirobotics.com
IMTS 2018 Level 3, Booth N-236142
