5-Axis Machining Centers
August 1, 2018
Takumi USA will debut its new line of 5-axis machining centers, which includes the U600 (XYZ/AC travels: 24.4" x 39.4" x 19.7"/ +30°-110° x 360°) and U800 (XYZ/AC travels: 31.5" x 39.3" x 29.5"/±120° x 360°). Both machines utilize a trunnion style, 2-axis table and the Heidenhain TNC 640 control. The U800 is a high speed gantry machining center over the high torque table (800 mm platter) that features an 80 RPM twin torque motor A-axis and a 100 RPM single torque motor C-axis. The U series by Takumi was developed to achieve high performance for die and mold, aerospace and other high-speed applications that require tighter tolerances.
The U800 will be featured at Takumi USA's booth with a 5-axis simultaneous cutting demonstration of a 20" tall replica of the famous Venus De Milo sculpture. The reproduction will be produced in 4140 steel - showcasing the rigid machine construction, speed and enhanced part surface finish. Programming of the Venus De Milo will be provided in partnership with Cimquest Inc. using Mastercam 5-axis toolpaths.
"We decided on the Venus De Milo sculpture for the demo on the new U800 because the Takumi tagline is The Art of Productivity, which is a rough translation of the word Takumi. And 5-axis illustrates the art of productivity perfectly," said Maggie Smith, Marketing Manager.
Additional booth events include a hybrid manufacturing process demonstration using a Takumi H12 in partnership with 3D Hybrid Solutions; and visitors will also learn how to "make more chips" with the Takumi FANUC H control on the heavy-duty high-torque Takumi V11 machining center in a partnership with Greenleaf Corporation.

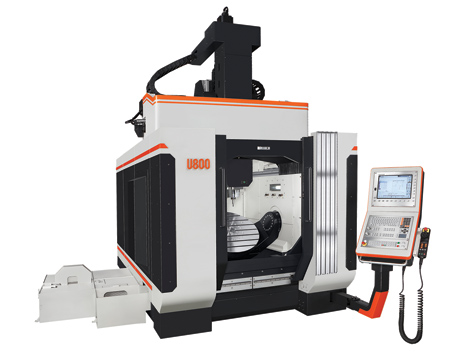

U800 specifications include:
- Table size: 800 mm
- Table load: 2204 lbs
- XYZ travels: 31.5" x 39.4 x 29.5"
- A/C travels: ±120°/360°
- XYZ rapids: 1890 IPM
- A/C rapids: 80 RPM/100 RPM
(direct drive ball screws)
- Spindle taper: HSK-63A
- Spindle RPM: 20,000
- Spindle HP: 33.5
- Spindle torque: 88 ft-lbs.
- ATC stations: 32
- Machine weight: 39,683 lbs.

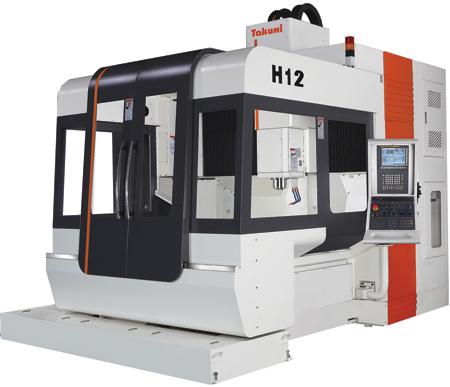

H12 specifications include:
- Table size: 59.1" x 37.8"
- Table load: 5,512 lbs.
- XYZ travels: 53.2" x 37.4" x 23.6"
- XYZ rapids: 1,181 IPM
(direct drive ball screws)
- Spindle taper: BIG PLUS 40
- Spindle RPM: 15,000 (direct drive)
- Spindle HP: 20.1/24.8
- Spindle torque: 105.5 ft-lbs.
- ATC stations: 30
- Machine weight: 28,600 lbs.

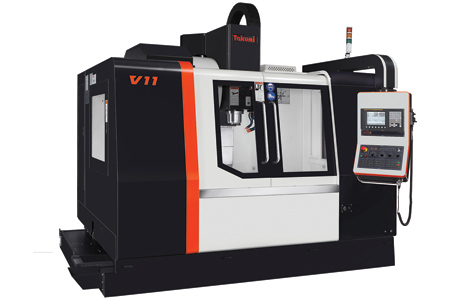

V11 specifications include:
- Table size: 45.28" x 25.59"
- Table load: 2,420 lbs.
- XYZ travels: 43.31" x 26" x 24.01"
- XYZ rapids: 787 IPM
(direct drive ball screws)
- Spindle taper: CAT 50
- Spindle RPM: 6,000 (Geared)
- Spindle HP: 14.8/20.1
- Spindle torque: 397 ft-lbs.
- ATC stations: 24
- Machine weight: 14,960 lbs.
For more information contact:
Takumi USA
7220 Winton Drive
Indianapolis, IN 46268
844-302-3792
info@takumiusa.com
www.takumiusa.com
IMTS 2018 Level 3, Booth S-338420
