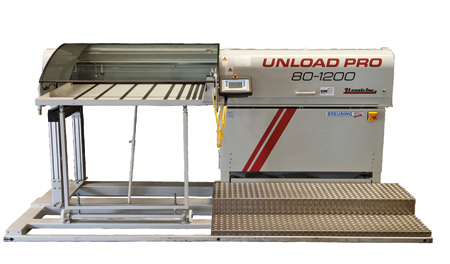

Lathe Sub-Spindle Part Unloader



Lexair Incorporated has introduced the Lexair Unload Pro 80-1200 sub-spindle part unloader. Based on the design by Breuning IRCO, a European manufacturer of lathe automation, it is now made in Lexington, KY, for quick delivery and lower cost.

The Unload Pro can handle unloading solid or tubing finished parts up to 80 mm (3.15") diameter sub spindle length parts up to 1.2 m (48") length. Sub spindle extensions are available. The Unload Pro is equipped with an incline adjustable part storage magazine 1 m deep (40") for parts that can touch after unloading. If the parts have a delicate finish or will not roll, an index conveyor is available. Standard unload configuration is an extraction rod equipped with an O.D. or I.D. collet. Other unload clamping methods are available. If the part surface is delicate, an unload tube fitted with nylon bushings can swallow the part to protect the surface while unloading.

The Unload Pro is programmable to gently and quickly unload parts in a controlled and safe manner and can shift axially to allow easy spindle liner change. It is applicable for new CNC lathes or retrofit to existing CNC lathes.

For more information contact:

Lexair Incorporated

2025 Mercer Road

Lexington, KY 40511

859-255-5001

www.lexairinc.com

IMTS 2018 Level 3, Booth W-431322
