Compact Five-Axis Machining Centers
August 1, 2018

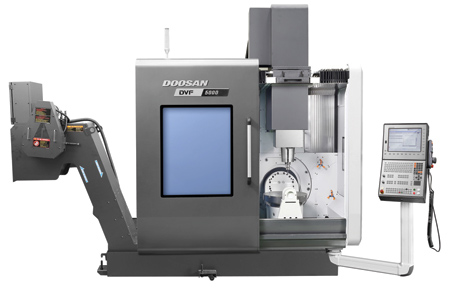

Doosan Machine Tools will feature the DVF Series of compact 5-axis machining centers. The DVF Series takes its place in the company's lineup of vertical machining centers (VMCs) specifically designed for cutting diverse and complex shapes.

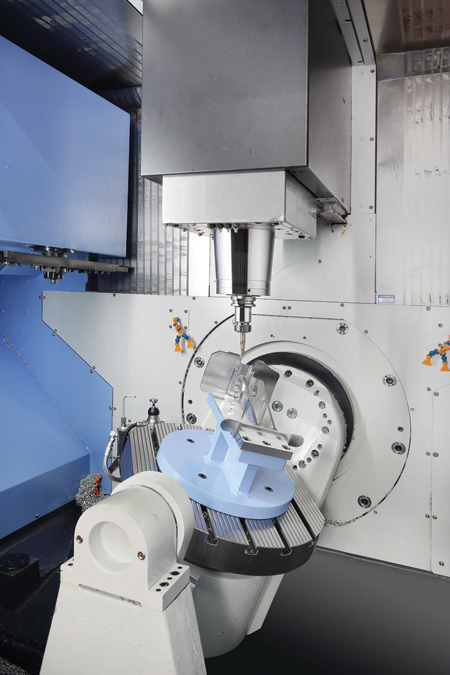

The DVF 5000 comes standard with an 18,000 RPM integral 40 taper spindle. A FANUC 31iB5 CNC controller makes full 5-axis simultaneous control possible, allowing complete contouring capabilities. It also features a 500 mm diameter (630 mm option) built in rotary table. Available table supports allow a maximum weight of 880 lbs. and minimize any table deflection. The rotary table is designed for user-friendliness and enhanced work efficiency, minimizing interference as the part is machined. Doosan also offers a DVF 5000 5 Face version with a FANUC 0iMF CNC controller and a 12,000 RPM directly-coupled spindle.
The DVF 8000 is a larger full 5-axis machining center that incorporates many of the features of the DVF 5000, but has a larger (800 mm diameter) rotary table that can support a maximum weight of 3,086 lbs.
Each machine comes with a 60-tool servo-driven automatic tool changer that can be expanded up to 120 tools, giving the customer more tooling to machine complex parts that have varying profiles. An oil cooled spindle controls heat to minimize thermal issues. The DVF Series also incorporates roller LM guideways for speed and added rigidity. The machines' compact footprint allows installation where floor space is limited or comes at a premium.
These VMCs offer a diverse range of tailored options and automation that make them suitable for unmanned machining. They come automation-ready and supplied with an optional/retrofittable auto workpiece changer (AWC) which provides additional productivity by offering up to 12 pallets to feed the machine for unattended machining.
For more information contact:
Doosan Machine Tools America
19A Chapin Road
Pine Brook, NJ 07058
973-618-2415
DMTA.Marketing@doosanmt.com
www.doosanmachinetools.com
IMTS 2018 Level 3, Booth S-339100
