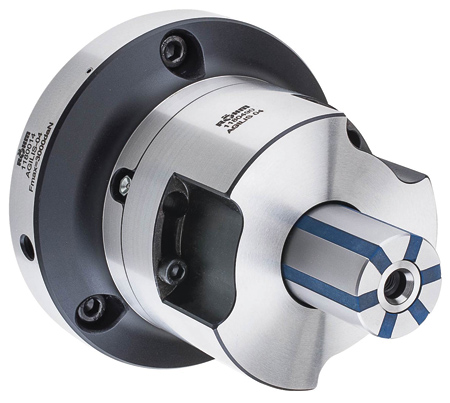

Cartridge Mandrel Offers High Accuracy for Internal Clamping



RÖHM Products of America recently introduced the lightweight, compact AGILIS power-operated cartridge mandrel clamping system. This new mandrel provides consistent, rigid workpiece I.D. clamping of very small diameters for grinding, turning, milling, drilling and measuring applications.

The AGILIS's mandrels axially draw in workpieces against a rigid workstop and hold workpieces with diameters as small as 10 mm with concentricity tolerances within 0.01 mm. The clamping system's sturdy design includes hardened clamping segments and guides designed to deliver uniform performance throughout long production runs. For flexibility, AGILIS is compatible with both 269-90 and 267-20 types of intermediate flanges.

An available manual quick-change system cuts the time needed to switch out clamping devices on the AGILIS. The quick-change system employs adapter plates to accommodate RMS quick-clamping screws. With quick-clamping screws, operators can complete manual clamping changes in approximately 30 seconds, all while maintaining positioning accuracy within 0.005 mm. The manual quick-change technology enables the use of central lubrication and airflow measurement devices.

For more information contact:

RÖHM Products of America

2500 Northlake Drive

Suwanee, GA 30024

800-445-7646

rohmusa@roehm.biz

www.rohm-products.com
