Universal Vise and Pallet Combination

Jergens new 125 mm vise and 96 mm pallet provide versatility for quick-change and increased machining access.

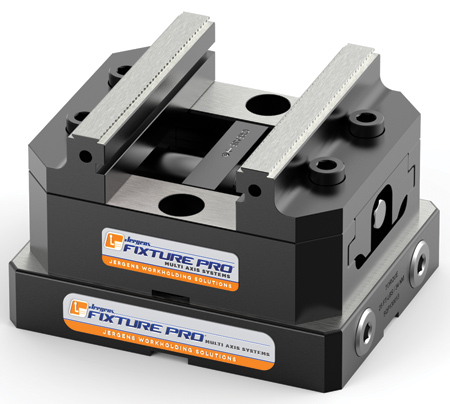

Jergens Inc. has introduced its 125 mm vise and 96 mm Drop & Lock pallet as a Universal quick-change solution. The two work together on vertical and horizontal machining centers and can open up possibilities on 5-axis/multi-axis machining centers for increased machining access and the quick changeover of both top tooling and machineable parts.

The new 125 mm multi-axis, low profile, self-centering vise features a compact footprint for broad use on quick-change pallets systems. The vise is constructed from 4100 series steel and precision ground to ensure accuracy and repeatability. With the addition of pull studs, this vise is compatible with products like the Quick-Point system. When used with the new 96 mm Drop & Lock pallet, the vise is completely compatible with all Jergens 5-Axis Fixture Pro Multi Axis Workholding products.

The 96 mm Universal Drop & Lock pallet is a new Jergens pattern that is compatible with top tooling such as Makro-Grip workholding products and Jergens Fixture Pro products. The new pallet provides increased accuracy, versatility and fast changeovers providing manufacturing efficiency on multi-axis machines.

For more information contact:

Jergens, Inc.

15700 S. Waterloo Rd.

Cleveland, OH 44110-3898
