Range of Sizes Available for Wire EDMs

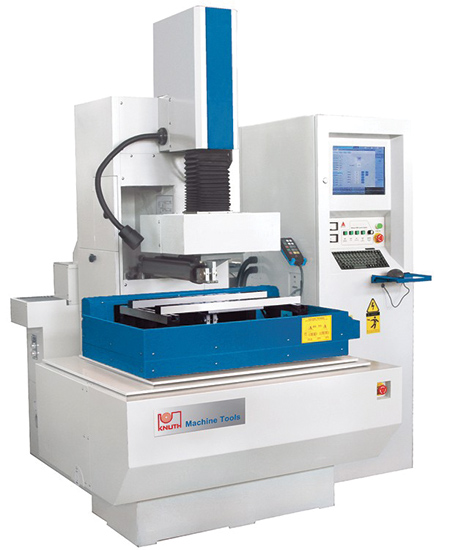

KNUTH Machine Tools USA, Inc. provides a full range of wire EDM machines for different cutting requirements.

Utilizing long lasting molybdenum cutting wire, these machines provide surface finishes of .8 µm Ra or better. "Coupled with cutting rates up to 17 in2 per hour, the DEM series from KNUTH Machine Tools USA, Inc. offers time and cost savings compared to traditional brass wire EDM," said a company spokesperson.

"Every system offers positioning accuracy of 0.00059/ 12 in. and repeatability of 0.00039 in., guaranteeing high quality production throughput for today's demanding tolerances," said the spokesperson.

Standard features for the DEM series includes CAD/CAM software, molybdenum erosion wire, filter, handheld control, RS-232 interface, table enclosure, operating tools and an operators manual with programming instructions.

KNUTH Machine Tools USA, Inc. has several DEM models to choose from, from a workpiece capacity of 1,100 lbs. and 22 x 14 x 10" X, Y, Z movement, up to a 5,500 lb. 49 x 31 x 15" X, Y, Z movement. Machining height capacities up to 39" (1 m) are available.

For more information contact:

KNUTH Machine Tools USA

590 Bond St.

Lincolnshire, IL 60069
