Small Footprint, Low Profile Workholding



The Deuce is designed to work with multiple jaw styles. The configuration shown features hardened master jaws with serrated gripper teeth and 45° dovetails.

The Deuce is the latest innovation in small footprint, low profile workholding from 5th Axis Inc. The patent pending vise system blends the functionality of a single station vise with a double station vise mounted on a common platform. The Deuce is designed to decrease set-up time and increase productivity.

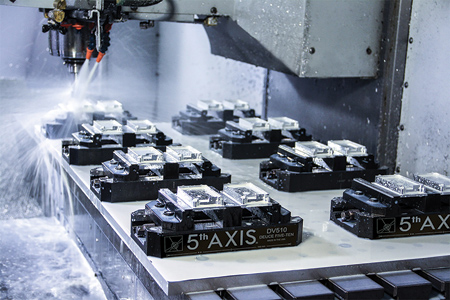

The hardened steel construction provides enhanced rigidity and clamping force. The compact footprint allows direct mounting to tombstones on horizontal machines. When mounted to vertical machining centers, the design allows for multiple units to be easily grouped together, increasing throughput.

The vise is designed to work with multiple jaw styles. The fixed center section can be added to transform the single station into a double station vise, doubling capacity.

A three-piece soft jaw set is also available, which can be used in place of the master jaws for workpieces that vary in size and shape.

The Deuce vise system is available in two sizes: DV56 5" x 6" and DV510 5" x 10". 5th Axis sources and manufactures all products in the USA.

For more information contact:

5th Axis Inc.

7140 Engineer Rd.

San Diego, CA 92111

858-505-0432

sales@fifthaxis.com

www.fifthaxis.com
