New CAD/CAM Software Functions Allow More Flexibility

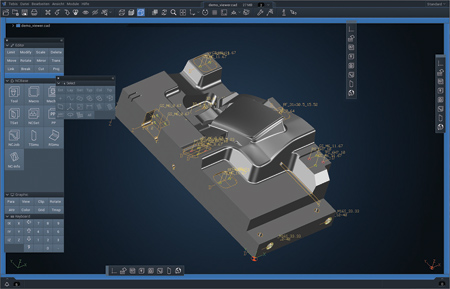

The user interface of the new Version 4.0 Release 3: Toolbars and menu panels can be docked to the edge of the application window.

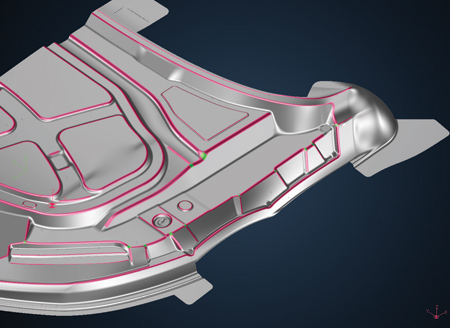

Improved active surface preparation: Positive radii can be conveniently flattened. This prevents contact of the sheet metal with the die in the specific areas in the press.

Tebis America, a software company specializing in CAD/CAM systems for design and manufacturing, has announced the release of its Version 4.0 Release 3 software.

Highlights of the new launch include: toolbars and menu panels that can be easily docked to the edge of the application window; software interface that allows a user to learn to operate it more quickly and easily; and a new project dialog with the most recently used files displayed immediately after the program is started.

With Version 4.0 Release 3, Tebis has improved the display of wire frame models and isolines. The user is often confronted with the problem of many isolines, which can make the view of the components unclear on the screen. Further, Tebis has focused on more efficient use of time by automatically breaking up assemblies and complex files into multiple individual files.

Another timesaving benefit is optimized reverse engineering. Release 3 provides improved algorithms that generate enhanced transitions for four-edge surfaces. The user can also quickly and easily adjust the approximation tolerance, as well as control generated radius runouts and theoretical edges more efficiently.

In surface modeling, when generating surfaces with constant curvature, Release 3 supports symmetrical areas and provides better management of input parameters when using optimization functions.

Version 4.0 Release 3 also delivers customers improved reliability in NC programs. An extended list with known machine conflicts is integrated into the CAD/CAM software for quick access.

NC automation of 2.5-D drilling and milling is more efficient. The processing sequence in feature-based NC programming can now be more easily influenced by feature groups. Tool optimization has been extended in the Job Manager. Tools can be changed across machining operations in NCJobs.

The user can shorten cycle times by roughly 30% in laser cutting and trimming because the improved NC point distribution results in more compact programs. The user can set axial tolerances and manually remove NC points. In Release 3, head tilt directions on the manufacturing machines can be handled more easily in stamping areas. This prevents rapid pivot movements of the machine. Toolpaths can be checked numerically with the "collision check machine" add-on, so that collisions and limit-switch conflicts never occur.

For more information contact:

Tebis America

400 E. Big Beaver Rd.

Troy, MI 48083

248-524-0430

info@tebisusa.com

www.tebis.com
