Enclosed Semi-Automatic Saw

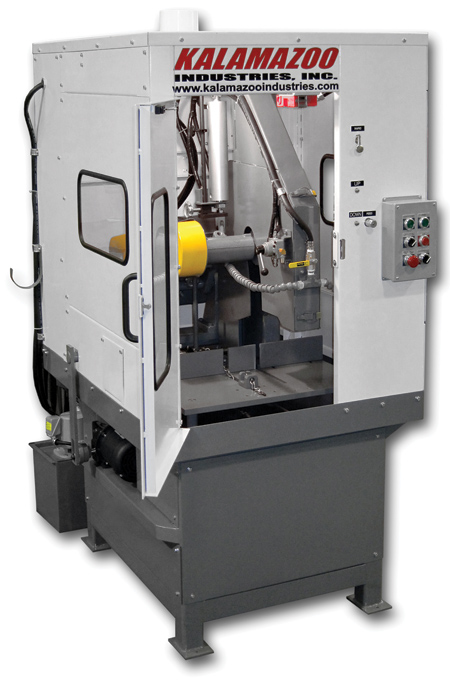

The Kalamazoo Industries model K20E semi-automatic saw is totally enclosed to help contain particles and coolant generated by wet abrasive cutting. The 50" L x 34" W x 80" H steel cabinet with front and side access doors is fitted with a 15 HP SD 3PH (220V or 440V) motor with magnetic starter and can accept a 20" wheel. Operation is manual feed with air over oil precise downfeed, automatic saw head return at the end of the cut and an adjustable down stop to limit the depth of the cut.

The K20E saw features a V-belt drive, sealed ball bearings, air chain vise, 1,950 RPM 1" spindle arbor and a coolant pump system with dual coolant hoses. Options include oscillation to produce metallurgical cuts in all types of metals, side access ports for long stock, cabinet door interlocks, T-slot tables, X-axis table, bed filter/ pump systems, air vises and specials made to customer specs.

For more information contact:

Kalamazoo Industries, Inc.

6856 East K Avenue

Kalamazoo, MI 49048
