Sinker EDMs for Large Workpieces

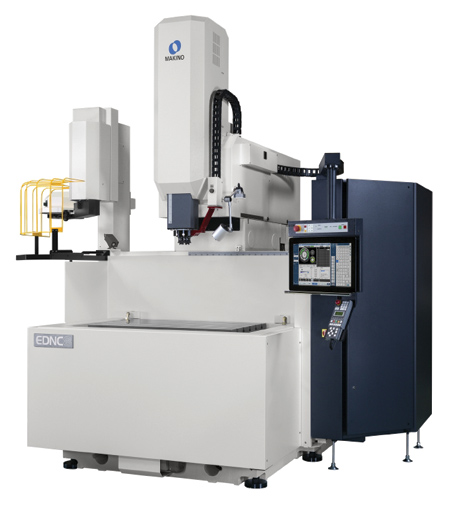

Makino has introduced its EDNC6 and EDNC8 sinker electrical discharge machines (EDM) that combine rigid construction, touchscreen programming and advanced performance features for accurate and fast cutting of large workpieces. "Makino's proprietary technologies included on the EDNC6 and EDNC8 are designed for the ideal mix of speed, surface finish and reduced electrode wear," said a company spokesperson.

Both machines feature the new Hyper-i control interface, which is the same system used on Makino's wire EDM products. The Hyper-i control provides operators with a user-friendly interface that can boost productivity for both Makino wire EDM and sinker EDM products.

The Hyper-i control helps to improve machine productivity by streamlining the interface so that all operator skill levels can achieve efficient results. This graphical control makes use of pinch, swipe and spread touch functions similar to smartphones and tablets and provides effective and natural operation using a 24" high-definition touchscreen monitor. The Hyper-i control is further enhanced with the integration of on-board digital manuals, intelligent E-Tech Doctor help functions and an e-Learning training system.

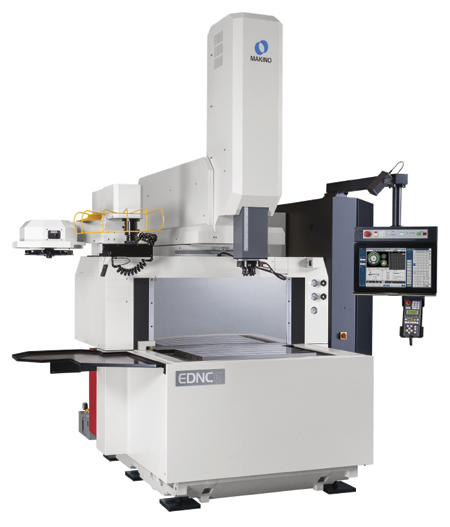

Both the EDNC6 and EDNC8 machines feature full three-sided programmable drop tanks that provide ergonomic access for set-up and operation. "The work tank height, which controls dielectric fluid level, can be set to match the height of the workpiece while providing optimum viewing of the machining operation," said the spokesperson.

Each machine model is available in a wide tank configuration that provides an increase in work tank size to accommodate larger workpieces. Work tank inner dimensions and machine strokes are as follows:

EDNC6:

  • Strokes: [X] 25.6" x [Y] 17.7" x [Z] 13.8" (Z 19.7" optional)
  • Standard Work Tank: 39.4" x 29.5" x 17.7"
  • Wide Work Tank: 55.1" x 35.4" x 17.7"
  • Maximum Fluid Height: 15.7".
  • EDNC8:

  • Strokes: [X] 31.5" x [Y] 19.7" x [Z] 15.7" (Z 19.7" optional)
  • Standard Work Tank: 55.1" x 35.4" x 19.7"
  • Wide Work Tank: 70.9" x 47.2" x 19.7"
  • Maximum Fluid Height: 17.7".

"Makino's patented drop-tank design allows fully open access to the table from three sides. This accessibility makes it easy to set up and measure large workpieces, check the condition in the work tank, perform other tasks that are done repeatedly every day and simplify requirements for automation," said Brian Pfluger, Makino's EDM product line manager. "The EDNC-Series provides the same level of productivity and processing capability as Makino's smaller work-zone EDAF-Series, but with a larger platform."

The design of the EDNC6 and EDNC8 also features:

  • High-mass castings to ensure mechanical and thermal stability
  • Stationary table for accurate positioning regardless of workpiece size or weight
  • Space-saving integrated reservoir in the base casting to reduce machine footprint size
  • Dual-anchored direct-drive ball screws that maintain precision long term.

"Productivity enhancing technologies on these machines include:

  • High-Speed Z-axis: The HS-Rib Z-axis configuration reduces rough machining speeds of small-size electrodes, such as plastic injection tooling ribs or pin gate details, and provides enhanced jump speeds of up to 20 m/min with 1.5 G acceleration that can reduce machining times by up to 60%.
  • HyperCut Technology: HyperCut is a new generator function that increases power levels without requiring additional reduction on the electrode, and it improves roughing speeds by up to 30% without affecting workpiece accuracy or surface quality. The technology minimizes electrode wear while providing the fastest possible machining speed.
  • SuperSpark IV: SuperSpark IV is an adaptive control technology that optimizes the machining discharge power and electrode jump motions during roughing and finishing operations. This technology is effective on rib or drafted electrodes and, when combined with HyperCut settings, can reduce total machining time by up to 50%.
  • High-Quality Surface Finish Option: All EDNC-Series sinker EDMs can be equipped with Makino's proprietary High-Quality Surface Finish (HQSF) technology that yields achievable surface finish capabilities 50% better than conventional surface finishes, regardless of discharge surface area. The HQSF technology can extend tool life through improved surface integrity and can also reduce cycle time even when fine surface finishes are not required."
