Heavy Duty Shrink Fit Chucks



The Heavy Duty Shrink Fit Chuck was specifically developed for heavy duty roughing in the heavy machinery and aerospace industries.

HAIMER Heavy Duty Shrink Chucks have a rigid outer geometry and reinforced wall thickness at the clamping bore.

Haimer USA will have many products and technologies on display at HOUSTEX 2017, including its precise , the latest advancement in the evolution of HAIMER shrink fit technology, engineered for heavy machinery.

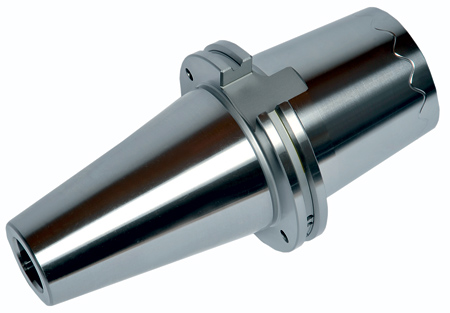

The Heavy Duty Shrink Fit Chuck was specifically developed for heavy duty roughing in the heavy machinery and aerospace industries. The rigid outer geometry and the reinforced wall thickness at the clamping bore make it a suitable chuck for roughing and unforgiving applications that need high levels of clamping and rigidity.

The Heavy Duty Shrink Fit Chuck has precision runout accuracy of <0.00012" (3 µm), and due to its patented geometry, vibration is undetectable with this chuck. "Like all HAIMER Shrink Fit Chucks, the Heavy Duty Chucks have the aforementioned precision as well as repeatable balance (all holders balanced to G 2.5 at 25,000 RPM) and gripping torque for enhanced tool life and surface finish," said a company spokesperson.

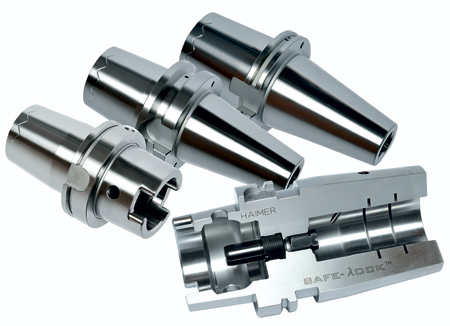

All Heavy Duty Chucks can be equipped with Safe-Lock, the pullout protection system developed by HAIMER. "This process reliability guaranteed by Safe-Lock allows the Heavy Duty Shrink Fit Chuck to replace the Weldon holder in heavy duty machining applications. And with over a dozen premium global cutting tool license partners, tools with Safe-Lock shanks are available from a number of sources," said the spokesperson.

The Heavy Duty Shrink Fit Chuck shrinks both carbide and HSS tools and accommodates round shank tools up to 2.0" in diameter in a variety of tapers.

are designed for:

  • Machining large steel and cast parts, e.g. gear housings
  • Extreme rigidity and clamping force even at long protruding lengths
  • High cutting capacity (High Performance Cutting, HPC)
  • Low vibrations due to patented geometry
  • Pull out protection for cutting tools with Safe-Lock.
  • For more information contact:

HAIMER USA

134 E. Hill Street

Villa Park, IL 60181

630-833-1500

haimer@haimer-usa.com

www.haimer-usa.com

HOUSTEX 2017 Booth #1221
