Automatic CNC Sawing Machine

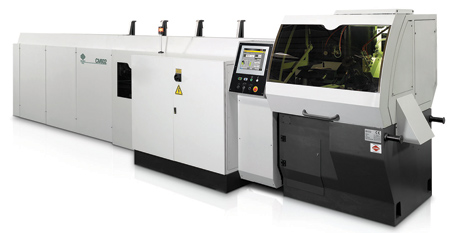

The CM602 automatic sawing machine from BLM GROUP USA

BLM GROUP USA's CM602 automatic CNC sawing machine can handle tube and bar up to 4" dia. depending on the material and can achieve blade speeds up to 5,000 RPM. It is designed for cutting short and medium length steel, copper, brass and aluminum tubes, as well as solid bars and custom profiles.

"Its compact layout, rugged construction and precise handling of the material during the entire cutting process makes it a good choice for continuous production operations," said a company spokesperson.

The CM602 is engineered to be operator-friendly. The operator is assisted with detailed step-by-step instructions via icons on a touchscreen panel. After entering the tube shape, material thickness, cut length and material type, the machine selects the appropriate blade from its library, calculates the stroke, cutting head feedrate and blade speed and then monitors the chip load to prevent the blade from being over-loaded and developing damaging excessive heat.

The material is loaded into the cutting area by a servomotor carriage, providing repeatable positioning and accuracy of the cut lengths. At the end of the cut, during the return movement of the head, the bar is retracted to enable its detachment from the blade, which helps to preserve the material's end finish and increase the saw blade's lifetime.

The cutting head is positioned at 45° to the tube surface. Its linear movement across the tube provides a uniform load on the blade, resulting in reduced noise and less scrap.

For more information contact:

BLM Group USA

29380 Beck Road

Wixom, MI 48393

248-560-0080

sales@blmgroupusa.com

www.blmgroup.com
