Solutions for Machining Alloy Steels, Oil and Gas Components



At HOUSTEX 2017, Booth 1742, HELLER Machine Tools will present its solutions for machining oil and gas field components with its 4-axis H Series horizontal machining centers, the H 14000. "This large capacity machine combines a super-robust machine design with the structural stiffness and high torque required for making the deepest cuts in the toughest alloy steels and irons," said a company spokesperson.

As a machine provider for large diesel engine component machining solutions, Heller's H series is suited for machining large pumps and housings for power and fluid transmission. It can be fitted with an NC-controlled feed out head for machining contours.

The capacity of the H Series machines to make roughing cuts all day while still providing finishing accuracies for XYZ positioning of 0.010 mm (according to VDI/GDQ 3441) makes it suitable for large, difficult to machine alloy steel and iron components. Feed forces of 20,000 N make it capable of making demanding cuts.

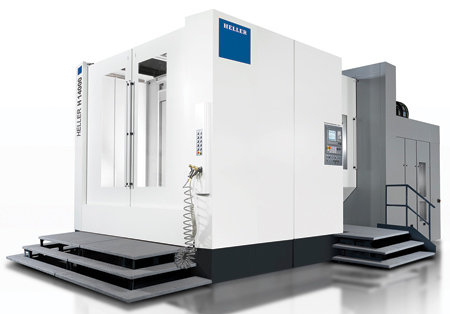

The Heller H 14000 features a work area of 2,400 x 1,600 x 1,600 mm in X/Y/Z over a 1,000 mm pallet capable of handling a 4,000 kg workpiece load. "HELLER has also minimized positioning times by focusing on realistic dynamic rates of 40 m/min in all axes," said a company spokesperson.

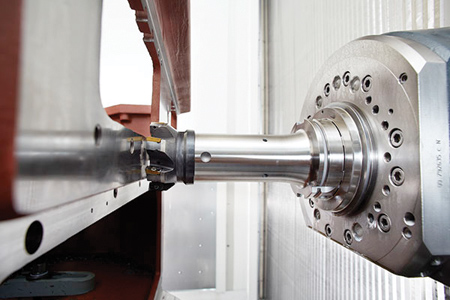

Heller's industry exclusive NC controlled out-facing head is available on the H 14000 for performing feed out operations on the machine such as taper boring, generating pockets as well as compensating diameters. A measuring probe for on-machine part checking, and instant tool breakage monitoring are integrated. The machines, consistent with efficient cell operation, are designed for manual or can be easily adapted to FMS systems or other automated loading systems.

With a high power cutting (HPC) gear-driven head stock, the H 14000 offers maximum torque of 2,292 NM and generating 60 kW of power at low RPM with options available for rigid face clamping for right angle milling heads. HSK 100 spindle taper is standard with a choice of chain type tool magazines for tools up to 800 mm length or rack type magazines with tool lengths up to 1,000 mm.

"The precision provided by all machine sizes in the H range is ensured through reduced table deformation and high precision due to internally arranged drives and linear scales," said a company spokesperson. "This provides high productivity and minimal axes positioning times resulting in reductions in machining times between 20 and 50 percent in practical application compared to competitive machines."

The H 14000 is designed with three chip augers that rapidly move chips out of the work area and into the chip conveyor, delivering the chips to the chip hopper.

To support its global customers, Heller machines are equipped with either Siemens Sinumerik 840D or FANUC 31i-B CNC.
