Circular Cold Saws for Cutting of Aluminum and Non-Ferrous Materials

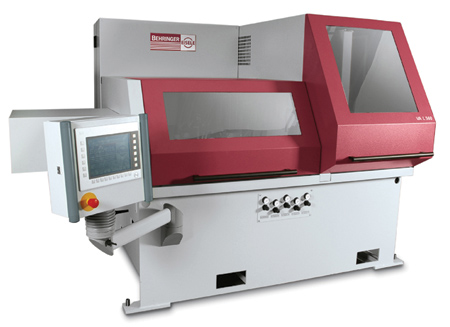

Behringer Saws, Inc., a manufacturer of high-quality bandsaw, circular and plate sawing solutions, has added the VA-L 500 to its line of high performance circular cold saws. Behringer Eisele GmbH designed the VA-L 500 sawing system specifically for production cutting of aluminum and non-ferrous materials. With a frequency-controlled main drive system and adjustable cutting speeds, the VA-L 500 can saw the full range of aluminum alloys and other non-ferrous materials in solids, thin-walled pipe and profiles efficiently.

The VA-L 500 saw comes standard with a 32 HP frequency controlled drive motor with 800 - 3,400 RPM speed range and a servo-driven downfeed with an adjustable rate from .39"/sec to 19.6"/sec to provide fast cut times. The fully automatic high-performance circular cold saw has a cutting range of 6" (152 mm) for round materials or 6" x 6" (152 x 152 mm) for square materials at 90° using a carbide-tipped circular saw blade with a diameter of 19.6" (500 mm).

"With a robust overall design and the latest drive technology in the feed axis and stiff saw blade guiding, the VA-L 500 ensures optimum, low vibration sawing with excellent cutting performance and surface finish quality," said a company spokesperson.

"Our VA-L series features a heavy-duty design, state-of-the-art drive technology used in the feed axis and main drive system, and an extremely rigid, ultra-precise saw spindle bearing," said Joe Suydam, Inside Sales and Marketing Manager at Behringer Saws. "The result is an optimized, low-vibration cutting process that provides maximum cutting output and excellent surface finish quality in both solid materials as well as in pipe and profiles with sophisticated cross-sectional geometry."

"An automatic blade/material separation feature guarantees a free return of the saw blade, reducing blade damage and resulting in high quality material finishes," said a company spokesperson. "An NC Controlled Gripper Feed Unit, driven by a servomotor, ball screw spindle and encoder with a single stroke capacity of 39.3 inches, ensures quick and precise movement of material."

A lift-and-shift device for material feed, a standard feature of the VA-L 500 saw, ensures the material is lifted slightly over the material support table, enabling the material to be freely fed without touching the material table and clamping jaws, eliminating damage to the surface of the material. Furthermore, to reduce buildup of chips and scratching of material, a blowing device rapidly removes chips from the clamping area, providing a clean material clamping surface area and unobstructed material flow for increased service life. Also standard on the VA-L 500 is a material disposal/discharge unit featuring a support plate and a sorting chute that moves trim/remnants and parts into two separate areas.

For more information contact:

Behringer Saws, Inc.

721 Hemlock Road

Morgantown, PA 19543
