Surface Mount Dock Lift Requires no Pit
November 1, 2014

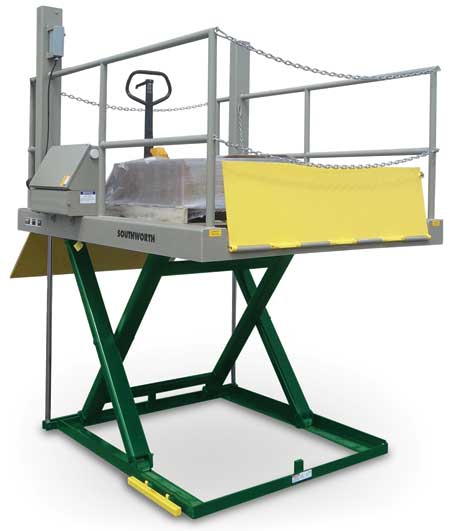

Surface Mount Dock Lifts from Southworth are designed to provide users all the convenience and versatility of a permanent scissor dock lift without the expense or hassle of digging a pit, making them useful for leased or temporary buildings.
With a lowered height of 5" and fully raised height of 58" the Surface Mount Dock Lift can access loads on truck beds of any height and transfer them to a fixed height loading dock or to grade level. A built-in 30" ramp creates a gentle 9° slope, providing easy pallet jack accessibility. Diamond tread on the deck, bridge plate and access ramp also promote improved traction.
Designated the SMDDL, the lifts feature an extra wide base and plate rollers for increased stability throughout the travel range. Models are available in 4,000, 5,000 and 6,000 lb. weight capacities with platform sizes of 6' x 6' or 6' x 8'. Heavy tubular legs and cross members help minimize deflection and provide level handling of off-center loads. The unit's hydraulic system uses biodegradable fluid to eliminate potential environmental hazards. An optional portability package for easy relocation of the lift is available.
Other features include: pushbutton control with keyed lockout; fully adjustable downspeed; velocity fuse protection; lubricated for life pins, rollers and bushings.
Southworth Surface Mount Dock Lifts come with two-year parts and labor warranty and a 10-year structural warranty. All Southworth dock lifts meet or exceed ANSI Standard MH29.1, Safety Requirements for Industrial Scissors Lifts.
For more information contact:
Brian E. McNamara, President
Southworth Products Corp.
P.O. Box 1380
Portland, ME 04104-1380
207-878-0700
salesinfo@southworthproducts.com
www.southworthproducts.com
