850 °F Universal Oven
November 1, 2014

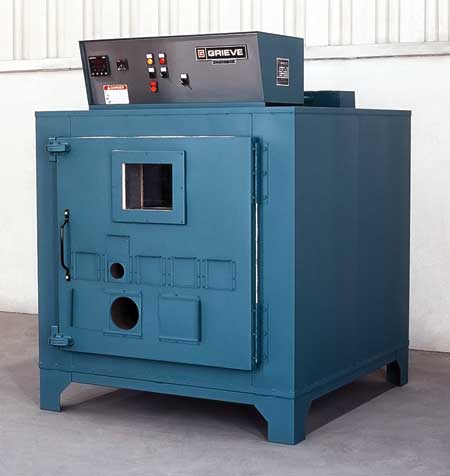

No. 985 is an 850 °F (454 °C), electrically-heated universal style oven from Grieve, currently used for heating the end of an aluminum rod at the customer's facility. Workspace dimensions of this oven measure 36" W x 36" D x 36" H. Eighteen kW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 600 CFM, 1/2-HP recirculating blower provides front to rear universal airflow to the workload.
This Grieve universal oven features 6" insulated walls, aluminized steel exterior, Type 304, 2B finish stainless steel interior, single front door with five 3" diameter ports and two 6" diameter ports equipped with slide dampers, plus an 8" x 10" Pyrex/Vycor viewing window and interior oven light.
Controls on No. 985 include a digital programming temperature controller, manual reset excess temperature controller with separate contactors and recirculating airflow safety switch.
For more information contact:
Frank Calabrese, VP
The Grieve Corporation
500 Hart Road
Round Lake, IL 60073-2898
847-546-8225
sales@grievecorp.com
www.grievecorp.com
