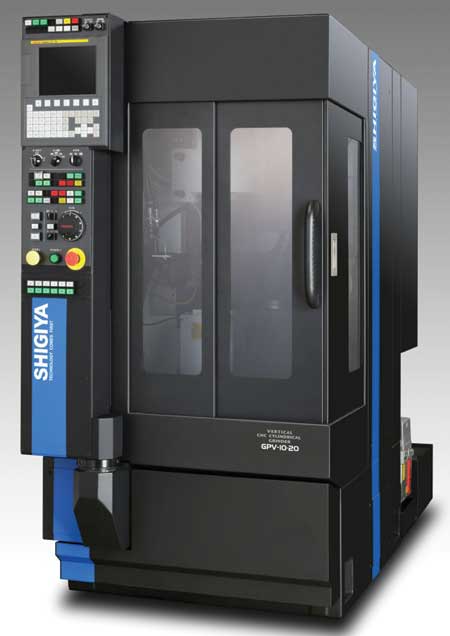

GPV-10 and GAV-10 vertical CNC grinders from Shigiya (USA) Ltd. feature compact footprints to accommodate a range of production line layouts. In fact, the main body of these machines is approximately 1 square m, or about half the size of an existing Shigiya GAC-20 grinder.
The GPV-10 cylindrical grinder and the GAV-10 angular cylindrical grinder are designed to grind small workpieces with precision. A gate structure helps ensure accurate grinding by counter measuring against vibration, thermal displacement and noise. A top beam securely connects the upper portion of the two columns. "The rigidity of these machines ensures extreme precision after a cold start, and even during post-process grinding," said a company spokesperson.
Further contributing to accuracy is Shigiya's original non-concentric hydrodynamic bearing for the wheel spindle. Mounted on the wheel side of the wheelhead, this bearing maintains low processing heat by optimizing the bearing clearance and the wedge angle. Infeed is performed by the table moving toward the wheel.
These vertical grinders offer features that promote ease of use, including a wide machine opening that allows for flexible automation of loading/unloading and easy maintenance. In addition, an electrical control panel hinged on the rear of the machines swings open wide to provide enough working space for easy wheel change.
The wheel changer of the GAV-10 is designed to enable smooth wheel change, easier operation and reduced operator fatigue. Removal and attachment of the grinding wheel are performed by the vertical movement of the air cylinder. The arm can be manually moved back and forward with ease. The grinding wheel of the GPV-10 is not angled and does not require a wheel changer to be changed.
Both the GPV-10 and the GAV-10 feature a 100 mm swing over table, and 150 or 200 mm distance between centers. Wheel sizes are 305 (O.D.) x 25 (W) x 127 mm (I.D.) or 355 (O.D.) x 25 (W) x 127 mm (I.D.).
