Rigid Profiling Tools for Accurate Contours
November 1, 2014

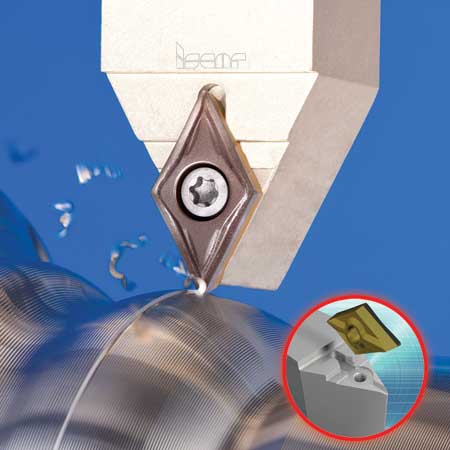

ISCAR offers its SDNCN ...-13-SL and SDJCN ...-13-SL Safe-T-Lock toolholders for 55° diamond inserts with a 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom are designed to provide high rigidity in profiling applications.
According to ISCAR, the design ensures high edge location precision after indexing and no backlash when changing machining direction as required in profiling applications.
The DCMT 13T5..-F3P-SL - 55° rhombic positive flank inserts with a F3P chipformer were designed for semi-finishing and finishing of steel. They are available in grades IC8150 and IC8250.
The DCMT 13T5..-M3M-SL - 55° rhombic positive flank inserts with a new M3M chipformer were designed for semi-finishing and medium machining conditions on stainless and low carbon steel. They are available in grades IC6015 and IC6025.
Apart from the new F3P and M3M chipformers, ISCAR offers the same insert geometry with the SM and PF chipformers on the standard DCMT 13T5..-SM-SL and DCMT 13T5..-PF-SL inserts.
According to ISCAR, the clamping design enables machining at high chip load, thus reducing machining cycle time while maintaining high profile accuracy.
The new tools are available in 5/8", 3/4" and 1" shanks.
For more information contact:
ISCAR Metals, Inc.
300 Westway Place
Arlington, TX 76018
817-258-3200
info@iscarmetals.com
www.iscarmetals.com
