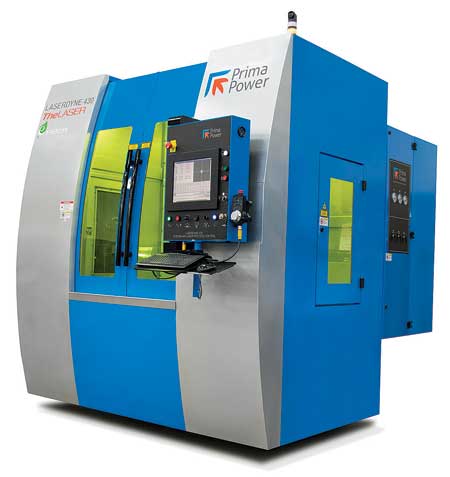

Prima Power Laserdyne has announced availability of the LASERDYNE 430 Series of precision laser systems with up to 20 kW QCW (quasi continuous wave) fiber lasers. This addition to the product offering expands the capability and flexibility of the system for precision cutting, welding and drilling applications. It features up to 6 axes of motion for enhanced flexibility.
This laser system is designed for ease of use in cutting, welding and drilling of 2D and 3D components requiring precision and consistency. The 430 BeamDirector system adds Laserdyne's third Generation BeamDirector (BD3Y). This gives users capability for drilling cylindrical and shaped holes, bevel cutting, and welding a range of materials, including aluminum, copper, stainless steel and titanium, all with the same system.
The high power QCW fiber laser provides required peak power for drilling applications and pulsed or CW output for cutting and welding applications.
According to the company, changeover between multiple sets of parameters occurs in the millisecond time scale so differing laser processes and/or multiple operations can be cost effectively performed in the same set-up.
Combining higher velocity and acceleration, the third generation BD3Y provides C (rotary) axis motion of 900°, and D (tilt) axis motion of 300°. According to the company, the BD3Y also includes optical encoders for improved accuracy and repeatability, higher assist gas air-flow, adjustable mirrors for easy and accurate beam alignment, and cassette mounted lens and cover slides for quick, accurate changeover. The improvements to design and motion control help the Laserdyne to maintain accuracy and repeatability specifications at all assist gas pressures up to 20 bar (300 PSI).
The BD3Y features collision protection backed by a five year, unlimited hours warranty covering crash related damage to the head. The BD3Y also includes a range of standard focusing lens assemblies, including right angle assemblies for processing inside cylinders having diameters as small as 60 mm and welding assemblies that shield the weld metal to prevent contamination and protect the focusing lens from spatter.
Addition of a sixth axis rotary table is intended to increase capability, flexibility and productivity of the system. "Compared to a 5-axis system with one rotary axis on the head and a rotary table, the 6-axis 430BD has been shown to produce shorter cycle times by reducing traverse distance between features and to process larger parts with laser beam angles as low as 10° to the surface," said a company spokesperson.
The LASERDYNE SP94P control offers a full complement of standard hardware and software features. This includes Automatic Focus Control (AFC) for capacitive part sensing, and as an option the patented Optical Focus Control (OFC) for sensing of non-conductive surfaces. Both the capacitive and optical methods of focus control guide the motion system, maintaining critical focus position and following the contour of the part regardless of surface irregularities. The linear axes of the system react to sensing of the part surface, creating unlimited correction along the axis of the beam. The combination of crash protection and part sensing gives the system operator confidence to use the maximum processing speed possible without fear of damaging the system or scrapping the part, said the company.
"Achieving a high level of accuracy from prototype to production stages and from one part to another with the LASERDYNE 430 is possible because Laserdyne designs and integrates all of its system features," said the spokesperson. "Everything works together in a coordinated manner - the controller, software, motion system, laser and process sensors."
For more information contact:
Prima Power Laserdyne
8600 109th Ave. North, #400
Champlin, MN 55316
763-433-3700
lds.sales@primapower.com
www.primapower.com
