Shell Mill Arbors Provide Coolant-Through Capability
November 1, 2014

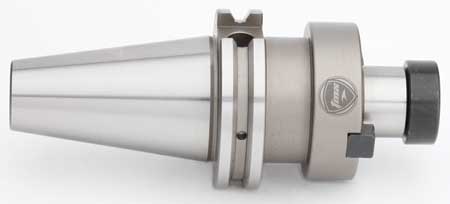

TMX Cutting Tool Solutions has introduced a new line of coolant through TMX CAT 40 and CAT 50 Shell Mill Arbors. These arbors expand upon the current line of TMX coolant through toolholders including CAT 40 End Mill Holders and CAT 40 ER Collet Chucks.
All TMX holders in this line feature the versatile DIN AD/B coolant system that allows for optional coolant through the spindle and/or the flange. TMX CAT 40 and CAT 50 Shell Mill Arbors go further and offer a DIN AD/B + C coolant system that can deliver coolant to the point of the cut via the arbor pilot once coolant is received from the spindle and/or v-flange. "More coolant means faster milling and better chip evacuation in indexable shell milling operations," said a company spokesperson.
The coolant through line of TMX Shell Mill Arbors offer:
- Balance and certified to 15,000 RPM/G6.3
- Max run out is .0002" (.005 mm) TIR for concentric consistent milling
- ANSI tool specifications
- DIN AD/B + C coolant specifications
- QA lab inspected for accuracy
- Individual lab certification
- AT3 taper accuracy for enhanced holder/spindle engagement
- Machined and shot blast surfaces to view surface integrity
- Compatible with popular machines.
"In other manufacturers' shell mill arbors without the AD/B + C coolant system, it has become common practice to drill a hole in the arbor screw to provide additional coolant" said Nancy Novinc, Director of TMX Cutting Tool Solutions. "This practice compromises the strength and toolholding ability of the arbors. With the AD/B + coolant system included on TMX Shell Mill Arbors, there is already coolant coming through the pilot."
