Two-Compartment 850 °F Universal Style Oven
May 1, 2015

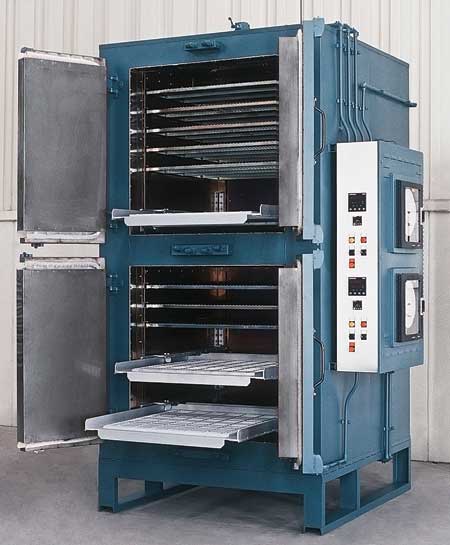

No. 979 is a 850 °F (454 °C), electrically-heated, universal style oven from Grieve, currently used for various machine shop heat treating operations. Workspace dimensions of this oven are 36" W x 36" D x 36" H in each of the two compartments. 24 kW (12 kW per zone) are installed in Incoloy-sheathed tubular elements to heat the dual oven chambers, while a 600 CFM, 1/2 HP recirculating blower provides front-to-back universal airflow to the workload in each compartment.
According to the company, this Grieve universal oven features 6" insulated walls, aluminized steel exterior with enamel finish, Type 304 stainless steel interior, double doors, three roller shelves rated for 200 lbs. loading, five nickel plated, 100 lbs. capacity shelves in the top chamber, three nickel plated, 100 lbs. capacity shelves in the bottom chamber and an integral leg stand.
No. 979 controls include a digital indicating temperature controller for each compartment, recirculating blower airflow safety switches, a 10" diameter circular chart recorder for each compartment to record part temperature and manual reset excess temperature controllers with separate contactors.
For more information contact:
Frank Calabrese, VP
The Grieve Corporation
500 Hart Road
Round Lake, IL 60073-2898
847-546-8225
sales@grievecorp.com
www.grievecorp.com
