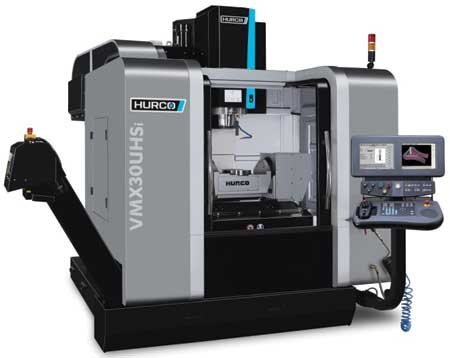

VMX30UHSi

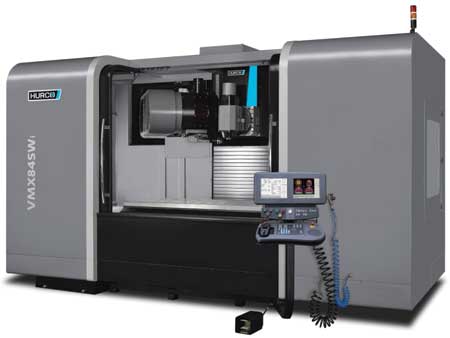

VMX84SWi

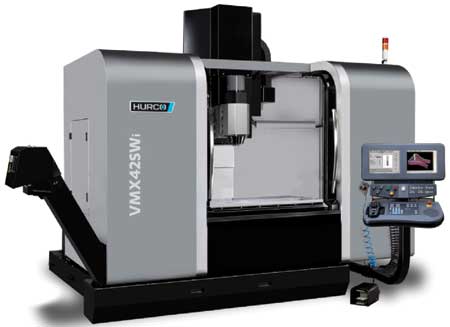

VMX42SWi
With the introduction of five 5-axis models, Hurco has announced an initiative called "" to galvanize manufacturers to evaluate the merits of five-sided machining for traditional 3-axis parts with features on all five sides.
"We are dedicated to helping shops increase profit margins and productivity by developing sophisticated control technology that is intuitive, easy to learn and easy to use," said Maggie Smith, Marketing Manager for Hurco Companies, Inc. "Since we know that adopting a five-sided process is the most efficient way to increase profit margins on existing parts, we have dedicated substantial engineering and R&D resources to 5-axis technology during the last decade and significantly expanded our product lineup.
"Purchasing a 5-axis machine is an investment in the future that pays dividends today. When a shop invests in a 5-axis mill and runs its existing parts on the 5-axis employing five-sided machining, or 3+2 as it is sometimes called, the shop immediately reduces set-up time, increases accuracy and reduces cycle time on those parts. In the future, the shop can bid on the more complex 5-axis simultaneous work or full 5-axis. Not only will shops expand their capabilities and customer base, but they will also help their employees expand their skills."
As part of the 5-axis initiative, Hurco has introduced five 5-axis models: the VMX30UHSi, VMX42HSRTi, VMX84SWi, VMX60SWi and VMX60Ui. The VMX42HSRTi has a swivel-head design with direct drive, rotary, torque table (C-axis) and is equipped with a high-speed 18,000 RPM integral motorized spindle. The VMX42HSRTi has X/Y/Z travels of 42/24/24, and the table's working surface is 50 x 24 inches. All of the SRTi 5-axis machines are designed to provide maximum manufacturing versatility to support a high mix of parts: complex simultaneous 5-axis parts; five-sided parts; and because the rotary torque table is embedded, the generous working surface of the table supports secondary operations, 3-axis work or even plate work. "Additionally, the stout table supports heavier loads, and the rotary torque table has unlimited angular movement instead of just 360 degrees that is often standard throughout the industry," said a company spokesperson.
The VMX30UHSi is a trunnion-style 5-axis machine equipped with a high-speed 18,000 RPM integral motorized spindle. As with all U-Series Hurco 5-axis machines, the VMX30UHSi was designed with an integrated trunnion table, which provides more clearance in the Z-axis and facilitates heavier parts, instead of simply mounting a table on a 3-axis machine. The second new trunnion-style 5-axis machine from Hurco is the VMX60Ui, which has a 12,000 RPM spindle and X/Y/Z travels of 60/26/26.5 inches.
The two new SWi machines added to the lineup are the VMX84SWi with X/Y/Z travels of 84/34/30 inches and the VMX42SWi with travels of 42/24/24 inches. "The SWi models offer 4-axis rotary functionality utilizing the same B-axis swivel head design as the aforementioned SRTi models but can be equipped with an optional A-style rotary table that meets your needs instead of the C-axis table that is on the SRTi models," said the spokesperson.
In addition to the release of new models, "" includes an educational website 5-axis.org, a webinar and several live seminars at events throughout North America.
