Band Saw with 13" Capacity
May 1, 2015

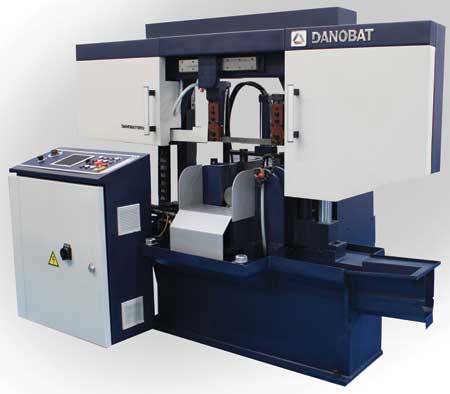

Pat Mooney Saws has introduced the Danobat DS3A, a band saw designed to cut up to 13" capacity. The Danobat DS3A is designed for cutting hard-to-cut materials such as Inconel, stainless steel and nickel alloys. The Danobat DS3A features accuracy and heavy construction with the aim of ensuring productivity, extended blade life and cutting quality.
According to the company, two columns are designed to accept high blade tension. The material is clamped on both sides of the blade to reduce burrs. The movable arm is automatically adjusted to the width of the material and is positioned in the optimum position in relation to the moving vise, designed to ensure the saw blade is supported as close as possible to the material on both sides of the cut.
Blade guidance is accomplished by bearings and plates fitted on plate holders. This is designed to allow realignment of the blade position, while the automatic arm avoids manual adjustments.
"Feeding of material by moving the vise is incremental thereby eliminating the need for the feeding vise to continuously move to the pre-set feed position. Results are faster cycle times and higher productivity," said a company spokesperson.
The cutting capacity includes:
- Round 13"
- Square 13" x 13"
- Bundles 13" x 8.3"
- Blade dimensions 195" x 1.3" x .04"
- Blade Speed FPM 46-295.
For more information contact:
Pat Mooney, Inc.
502 S. Westgate
Addison, IL 60101-4525
630-543-6222
www.patmooneysaws.com
