High-Speed Gear Shaper
May 1, 2015

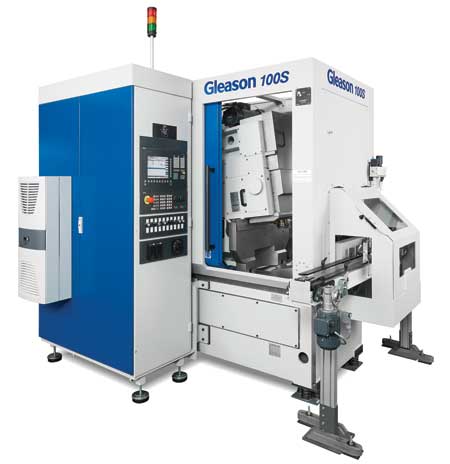

Gleason Corporation has announced the 100S Gear Shaping Machine, featuring a stroke rate of up to 3,000 strokes per minute. The 100S is designed for small face widths gears, including spur and helical gears, both internal and external, as well as automotive synchro rings and tapered gears. The 100S is easily moved, quickly installed and powered up. It is compact and requires significantly reduced floor space.
Features of the 100S include:
- High productivity, with stroke rates up to 3,000 strokes per minute.
- Static and dynamically stiff machine concept, aided by a twin-bearing crankshaft design.
- Offered with standard dry machining cycle; optional wet machining is available.
- Optional automatic adjustment of stroke position after re-sharpening of the shaper cutting tool.
- Fast, tool-less set-up.
- Fast clamping and unclamping system HSK 63 for high repeatability and manual activation for minimized weight.
- Short chip-to-chip times with cam driven loader that reduces workpiece change times.
For more information contact:
Gleason Corporation
1000 University Avenue
P.O. Box 22970
Rochester, NY 14692-2970
585-473-1000
sales-americas@gleason.com
www.gleason.com
