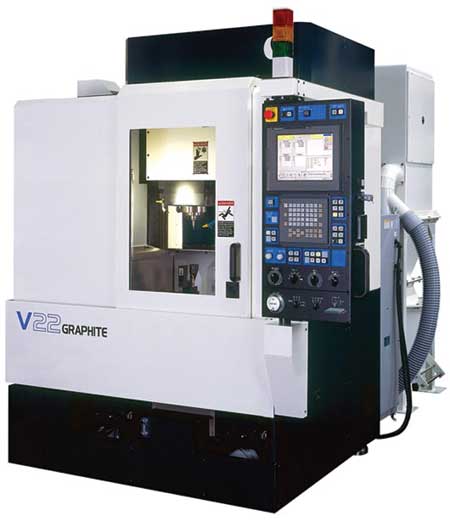

Makino has introduced the V22 graphite vertical machining center, designed for precision electrode production and high-accuracy die / mold component machining. The V22 joins Makino's versatile V-Series machines and features improved control technologies for high accuracy and high-speed, hard-milling applications.
"The V22 graphite offers the rigidity and speed necessary to produce tight-tolerance geometries for today's most complex electrode and hard metal mold applications," said Bill Howard, Makino Product Manager. "The machine's 40,000-RPM spindle offers superior finishing capability and is ideal for intricate, small tool work - enabling machining of high-grade electrodes in a short time."
In addition to its efficient machining of graphite workpieces, the machine's wide-ranging spindle is designed to machine a variety of hardened materials typical of the die / mold market. "The V22 graphite is also outfitted with Makino's Professional 5 control and the latest iteration of Super Geometric Intelligence (SGI.4) software for the highest level of precision and lowest cycle times achievable in complex geometries, cavities and cores," said a company spokesperson.
The V22 offers a standard 11.3-HP, continuous 40,000-RPM spindle. "It is complemented by Makino's patented core cooling and under-race lubrication system that controls spindle thermal distortion and has proven essential for optimal high-performance applications," said the spokesperson.
The X-axis of 12.6" (320 mm), Y-axis of 11" (280 mm) and Z-axis of 11.8" (300 mm) operate in a work zone and table size of 17.7" by 13.8" (450 mm by 350 mm). The slideway design provides for a 787 IPM (20,000 mm/min) rapid traverse and 394 IPM (10,000 mm/min) cutting feedrates. "The Z-axis is designed without any overhang to ensure superb accuracy over the entire range of travel," said the spokesperson.
The V22 can handle a 220-lb. (100 kg) load and maximum 17.7" (450 mm) by 18.7" (475 mm) by 7.8" (200 mm) workpiece. The machine features an HSK-E32 spindle interface with a standard 30-tool automatic tool changer with a larger 60-tool-changer option.
The V22 measures 4.9 by 6.5' (1,500 mm by 2,000 mm), and all set-up work is concentrated within the machine's front width of 4.9' (1,500 mm). "In order to provide a clean shop environment, a fully enclosed splash-guard and powerful dust collector completely seal the entire machining area to prevent graphite dust from escaping," said the spokesperson. In addition to graphite machining, the V22 is designed to handle machining of steel and hard metals characteristic of most die / mold shops.
According to the company, the integrated splash-guard door and ceiling are designed to enable easy handling of large workpieces. "The door and ceiling open together for trouble-free access to the table with an overhead crane," said the spokesperson. An optional automatic work changer or multi position robot pallet system are designed for long-term continuous automatic operation.
In addition, the V22 graphite is outfitted with the Makino Professional 5 control using a Microsoft Windows CE operating system that is designed to provide a stable, secure platform with reliable performance on the NC side while providing an operator-friendly graphical user interface (GUI). This latest-generation machine tool control features large, color, touch-sensitive, on-screen, menu-driven applications. Icons serve as "hot links" and enable quick access to critical information that may be required by the operator. "In addition, the new control platform provides all of the functions typical of a PC (cut, paste, copy, find, replace, etc.) that are rarely available on a machine tool control," said the spokesperson. "Advanced data management technology and Makino's proprietary, next-generation SGI.4 servo control deliver the lowest cycle times achievable by reducing machining cycle times on dies, complex cavities and cores by as much as 40 percent."
