Machine Designed for Serial Production of Workpieces

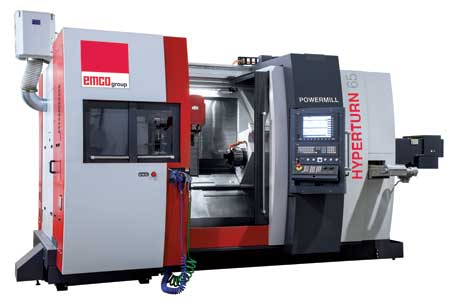

The Hyperturn 65 Powermill offers a large spindle clearance of 1,300 mm, a powerful counter spindle which also allows 4-axis machining, a B-axis with a direct drive for complex 5-axis simultaneous milling operations, and an additional Y-axis for the lower turret, making it useful for machining complex parts.

According to the company, the ergonomically designed machine is particularly well suited to the serial production of workpieces, for example in the automotive industry, the fields of mechanical engineering and materials handling, as well as the aircraft industry.

"Complex, costly turning, drilling, milling and gear cutting operations can be completed in one set-up," said a company spokesperson. "Additional handling and part storage is eliminated and workpiece precision is greatly improved. Total production time, fixture and personnel costs, as well as floor space requirements, can be drastically reduced with the Hyperturn."

Now with 29 kW and 250 Nm, the counter spindle has enough power to machine the workpiece simultaneously with two tools, enabling 4-axis machining.

A further benefit is the milling spindle, which with 29 kW, 79 Nm torque and speeds to 12,000 RPM, promotes productivity in the complete machining of complex workpieces. According to the company, the B-axis direct drive gives the Hyperturn 65 PM good dynamics and contour capabilities with 5-axis simultaneous machining, along with shorter tool change times. The additional Y-axis on the lower turret makes extensive milling work possible at the same time as machining with the milling spindle.

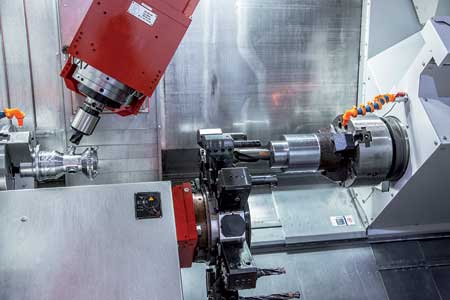

The milling spindle with HSK-T63 tool interface can be used for both turning and drilling/milling work. It can be continuously swiveled within a range of +/- 120° and clamped at any point. With a Y-travel of +120/-100 mm, complex machining work can be carried out. This includes gear cutting operations, turning/milling work for crankpins, 5-axis machining and more. The tools can be prepared according to the customer's requirements with a 20-piece pick-up magazine or a 40- or 80-piece chain magazine.

The Y-axis is accomplished by two interpolating axes, resulting in a distribution of the cutting force in two levels and added stability in heavy-duty turning and milling. This means the lower turret with integrated milling drive can also be used for complex milling operations at all 12 positions, combined with a Y-axis with +/-50 mm travel.

"The 20-, 40- or 80-piece tool magazines with HSK-T63 give the user more possibilities for complete machining operations of complex workpieces, with simultaneously low set-up times for individual parts manufacturing and high stability for turning and milling works," said the spokesperson. "The frontal arrangement is ergonomic and easy to set up."

As an alternative to the VDI30 or VDI40 12-position tool turret, EMCO offers a new generation of turret with BMT interface and direct drive. Higher stability and precision, along with performance data similar to a milling machine, enable the complete machining of turning/milling workpieces, according to the company.

The machine versions with a milling spindle and turret including milling drive (SMBY/SMBY2) have a cross slide underneath with a 12-position radial turret for 12 driven tools working up to speeds of 5,000 RPM.

The automatic bar machining and/or delivery of unit loads via a robot or the EMCO gantry loader offer potential for increased efficiency in automation.

Control

The Hyperturn 65 is controlled by the Siemens SINUMERIK 840D-sl. The new user interface is designed to enable intuitive and easier programming of the machine.

The EMCO CPS Pilot simulation software is designed to generate time and cost savings during machining. This software enables customers to plan, program, simulate and optimize production runs on their PCs using a 3D model of the machine.

In the tailstock version the Hyperturn is particularly suited for mass machining shaft parts. The tailstock is completely NC controlled and can be positioned using a recirculating ball spindle. This enables the movement interpolating with other axes, saving machining time.
