New Control Cable
January 1, 2015

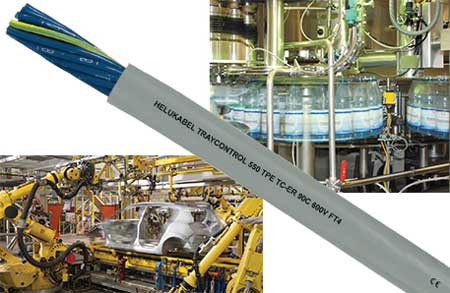

HELUKABEL offers the latest control cable addition to its TRAYCONTROL family of products. "The TRAYCONTROL 550 TPE is a flexible, oil-resistant control cable with blue- or red-colored conductors that is approved for open, unprotected installation in cable trays from power sources/control units to the machine," said a company spokesperson. "The TRAYCONTROL 550 TPE was developed to help offset the need for PUR cables in tray applications. The specially blended TPE has been designed to perform as well as standard PUR cables with the added benefit of being able to transition from cable trays to free air, an installation method not permitted for PUR cables."
The combination of TC-ER, PLTC-ER and ITC-ER allows this cable to be used as a connecting cable for AC, DC or control wiring in accordance with NFPA 79 Edition 2007. Its enhanced oil resistance (Oil Res I & II) is designed to provide a long service life for machine tools in industrial applications located in dry, damp and wet environments such as the automotive, food and beverage industries or other various production lines found in harsh locations.
Additional TRAYCONTROL 550 TPE specifications:
- Temperature range: -40 °C to +105 °C (flexing applications)
- Nominal voltage: TC - 600V / AWM & WTTC - 1000V
- Min. bending radius: 7.5X the cable O.D.
- Approvals: UL - TC-ER, PLTC-ER, ITC-ER, MTW, NFPA 79, WTTC 1000V, DP-1, Oil Res I & II, 90 °C dry/75 °C wet, Class 1 Div. 2 per NEC Art 336, 392, 501, & crush impact test in accordance with UL 1277 / CSA - c(UL) CIC-TC FT4, CSA AWM I/II A/B FT4.
It is available currently in 18 AWG and 16 AWG of various conductor configurations. More gauge sizes will be added according to market needs. For customers working in facilities where high levels of electromagnetic interference are prevalent, a shielded variant is available upon request.
For more information contact:
HELUKABEL USA, Inc.
1490 Crispin Drive
Elgin, IL 60123
847-930-5118
sales@helukabel.com
www.helukabel.com
