High Precision Turning Center

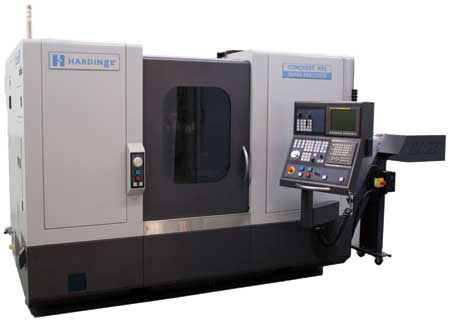

Hardinge Inc. has released its newest turning center, the Conquest H51 SUPER-PRECISION.

"The Conquest H51 represents the latest in technology, precision and capability," said a company spokesperson. "This ultimate bar machine, featuring the Hardinge quick change Collet-Ready Spindle, is available in both high precision and SUPER-PRECISION models." According to the company, the machine features the following performance specifications:

  • Part roundness: main spindle .000020" (.5 um)
  • Part finish: main spindle .000008" (.2 um)
  • Continuous machining accuracy deviation on diameter within .0002" (5 um).

The Conquest H51 features a 20 HP, 5,000 RPM A2-6" main spindle with 2" bar capacity. "It offers a generous maximum turning diameter of 12.3 inches and a maximum turning length of 25.6 inches," said the spokesperson. "The 12 station turret offers 1/2 station index for up to 24 tools. The machine offers a wide variety of standard features such as through-tool coolant, bar feed and chip conveyor interfaces, three position stack light, PSMCIA memory card, rigid tapping and many others including machine crash protection." The machine is offered in a number of configurations depending on which option is selected, which include:

  • High Precision
  • SUPER-PRECISION
  • Tailstock
  • Live Tooling
  • Y-axis

"The machine is designed with accuracy in mind in all component areas," said the spokesperson. "For instance, the hydraulic module is located at the rear of the machine in the detachable utilities system platform in order to mitigate any heat related issues. All SP machines feature linear scales in the X-axis and scales are available on the Y- and Z-axis as well. All SP and HP machines have a programmable resolution of 10 millionths/.00001 inches (.1 um)."

According to the company, the Conquest H51 is offered with either a FANUC 0i-D or Mitsubishi 720 control, each with many standard features.

For more information contact:

Hardinge Inc.

P.O. Box 1507

Elmira, NY 14902-1507

800-843-8801

info@hardinge.com

www.hardinge.com
