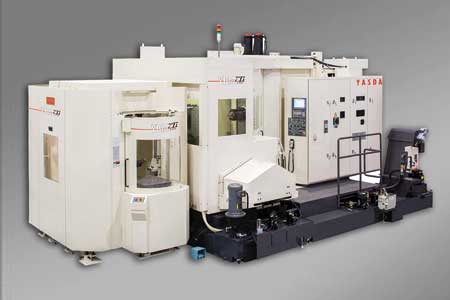

Methods Machine Tools, Inc., a supplier of precision machine tools, automation and accessories, has introduced the YASDA YBM 7Ti 5-Axis Precision Horizontal Machining Center featuring high accuracy and performance. According to the company, the rotary table design and rigid machine structure provide high performance machining of heat-resistant materials, such as titanium and Inconel. The YBM 7Ti has hardened slide box guideways and a 10,000-RPM, 50-taper direct-drive spindle. Positioning accuracy on the X, Y, Z axes is +/- 0.005 mm (0.0002") and is +/- 1 second (measured in degrees) on the A/B rotary and tilting axis.
"Manufacturers in sectors such as aerospace and power generation require a robust solution for machining heat-resistant materials," said Mr. Steve Previti, YASDA Product Manager. "The YBM 7Ti provides the power, rigidity and performance to efficiently machine these very challenging materials for the manufacture of complex, high precision components."
According to the company, the newly designed rotary table offers four times the rigidity compared to other rotary tables. There is ample room around the pallet which provides smooth table movements and allows operators to get a closer and clearer view of their parts.
"The YASDA YBM 7Ti features a 25-ton, H-shaped steel machine base designed for absorbing cutting forces and minimizing any machine vibration. All linear axes have hand-scraped, hardened slide box guideways for accuracy when making challenging cuts. Hardened, ground and lapped guideways are designed to enable rapid feeds of up to 48 m/min, yielding high accuracy throughout every full stroke. To achieve maximum performance levels, the mating faces of the guideways are about double the width of more traditional linear guideways," said a company spokesperson.
The YASDA YBM 7Ti features a direct-drive spindle system that is designed to keep cutting forces away from the spindle motor, which maintains consistency and repeatability. A YASDA self-adjusting spindle system automatically adjusts the preload to the spindle bearings, designed to enable a wider range of cutting capabilities.
The new YASDA horizontal machining centers have a large work envelope with X, Y, Z travels of 49.2" x 39.4" x 43.3" (1,250 mm x 1,000 mm x 1,100 mm), respectively, a vertical rotation of 360 degrees and a horizontal rotation of +/- 100 degrees. A two-pallet system has 19.7" x 19.7" (500 mm x 500 mm) pallets for a maximum loading capacity of 1,102 lbs (500 kg) on each pallet. Maximum part size is 24.8" (630 mm) in diameter and 19.7" (500 mm) in height. A YASDA curvic coupling system with large diameter circle gears is used to support the back side of the pallet, designed to allow the accuracy of the center of the pallet to be fully maintained. An automatic tool changer holds up to 240 tools. The FANUC FS31i-B5 control is furnished standard.
