Hainbuch America will showcase two quick changeover systems, the centroteX and the SPANNTOP.
The centroteX system is designed to allow changeover of any workholding device on a machine within five minutes while maintaining accuracies, eliminating the need for an operator to indicate the workholding system during changeovers and decreasing machine downtime.

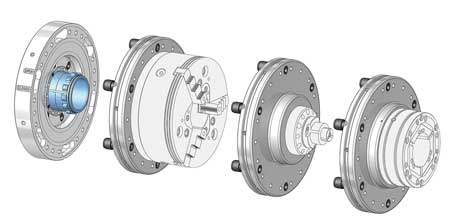

This system has a common flange plate that is fitted to the machine spindle along with a bayonet mount on the drawtube. The sub plate with chuck or fixture is then coupled to this interface, rotated 15° and locked via quick connect fasteners. Location accuracy is achieved through hardened steel balls pulled back to conform with the taper in the flange plate.
The centroteX System can be mounted on any CNC machine with almost any workholding or fixture device, allowing manufacturers to schedule their production scenarios according to their customer needs and not according to the workholding set-up on the machines.

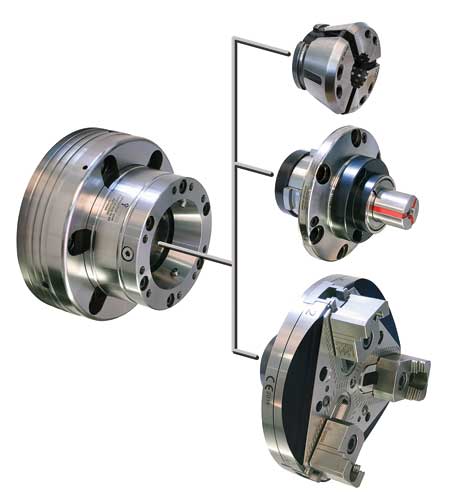

Hainbuch's SPANNTOP Modular Chuck System utilizes HAINBUCH's original 10-second collet change for O.D. clamping.
With the MANDO Adapt mandrel changeover, changing from O.D. clamping to precise I.D. clamping can be accomplished without changing the clamping device. Place the mandrel in the mounted clamping device and tighten three screws to lock the mandrel in the clamping device for rigidity and precision. For rotating products, concentricity of 0.005 mm between taper and mandrel taper can be achieved. For stationary clamping devices, repeatability of 0.003 mm is possible. This can be accomplished without adjusting.
New to the Hainbuch modular system is the Jaw Module, which is small and flexible, can be quickly changed and covers a large clamping range. "The result is a quick-change clamping solution for all situations," said a company spokesperson. "The new Jaw Module completes the circle of modularity and gives a new clamping dimension that opens up more possibilities for users. All this with less weight and a smaller interference contour."
