Versatile Mobile Surface Measurement System



The Jenoptik W10 mobile surface roughness measuring system is designed for measurements on the production line or machining cell. According to the company, it is light and compact in design, easy to operate with long-lasting battery power and is simple to use. Operation is intuitive through the graphic user interface. More than 800 measurements with one battery charge and measuring results may be quickly printed out on the integrated printer wirelessly via Bluetooth technology.

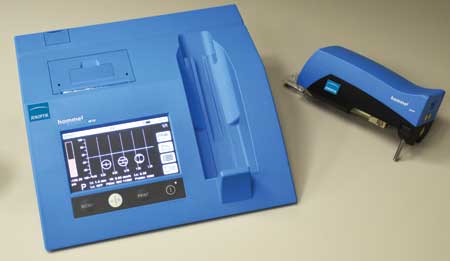

The new Jenoptik W10 is capable of checking more than 40 roughness and waviness parameters using an extensive array of probes and accessories.

The W10 is designed to easily fit into the user's hand making it simple to precisely position on the workpiece. The wireless device can be used for transverse probing, overhead measurement, mobile measurement on small shafts, perpendicular measurement and is equipped with tripod legs to adapt to small workpiece height. An integrated V-groove securely positions small shaft type parts on the unit for measuring.

The W10 is capable of tracking eight separate measurement programs, including one for device verification, up to 100 separate profiles, with a total storage capacity of up to 10,000 completed measurements.

The integrated click wheel allows the operator to select device functions. In conjunction with the large color display with graphic interface, delivering easy-to-see results and tolerance evaluations.

"The roughness probes and measuring instrument electronics are calibrated independently from each other at the factory. This eliminates the need to make regular adjustments to the amplification or to recalibrate - a big advantage for everyday measuring," said a company spokesperson.

  • Height adjustment integrated from factory - The extendable tripod legs can be used to adjust the measuring instrument to the height of small workpieces. This allows such measuring applications to be implemented without an additional means of holding.
  • Measurement on small shafts - The support prism centers workpieces like small shafts from 10 mm diameter reliably on the correct measuring position and protects the probe for measurements in bores from 12 mm diameter.
  • Precise workpiece support - The contact to the workpiece is made by precisely polished support shafts. This guarantees permanent, stable workpiece support. A height measuring stand can turn the W10 in a complete measuring station for tasks that require precise positioning.
  • Tolerance evaluations at a glance - The colored display of the measurement results depending on the tolerance evaluation allows the measurement results to be assessed at a glance.
  • Measurement position lighting - The transparent probe cover combined with the measurement position lighting makes the exact measurement position of the roughness probe very easy to see. This makes the positioning of the measurement easier when it counts.

All the necessary functions are covered with just one USB port: Battery charging function or permanent power supply, USB connection to PC to transfer parameters and profile data, external controls via foot switch and remote controls.

With the optional TURBO DATAWAVE basic software the measurement results from the W10 can be transferred into an Excel spreadsheet on a PC for further processing and documentation. Also optional, TURBO DATAWAVE expert is evaluation software for PC-controlled programming and parameter analysis and provides the ability to control the W5 remotely.

  • Integrated printer - The thermal printer built into the W10 documents the measurement results on the spot using Bluetooth. The roughness measuring instrument remains mobile, even if the measurements need to be documented. The printer is controlled from the roughness measuring instrument. The robust, fiberglass-reinforced plastic casing is designed for industrial use. Up to five rolls of paper can be printed with one battery charge. Measuring conditions, parameters, tolerance evaluation, roughness profile and Abbott curve: depending on the measuring program, this information can be printed off individually or in combinations.

For more information contact:

Jenoptik Industrial Metrology

1505 West Hamlin Rd

Rochester Hills, MI 48309

248-853-5888

www.jenoptik.com/industrial-metrology

IMTS 2014 Booth E-5545
