High-Speed 5-Axis Universal Machining Center
August 1, 2014

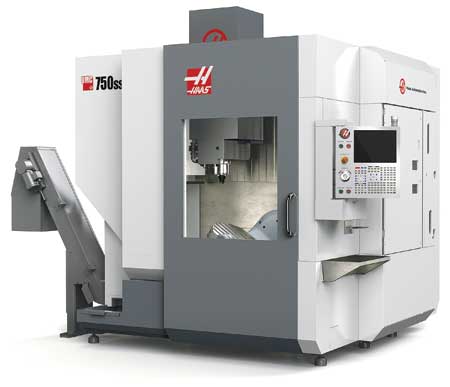

The UMC-750SS universal machining center from Haas Automation, Inc., is designed for quickly machining 5-sided (3+2) and simultaneous 5-axis parts.
The UMC-750SS is a 5-axis, 40-taper universal machining center with 30" x 20" x 20" travels, 1,200 IPM rapids and an integrated high-speed, dual-axis trunnion table. The machine is equipped with a 15,000 RPM inline direct-drive spindle, a high-speed 40+1 tool side-mount tool changer and Haas Automation's high-speed machining software.
The UMC-750SS's high-speed, roller-cam trunnion table offers 150 deg/sec feedrates to position parts to nearly any angle for 5-sided (3+2) machining, or provide full simultaneous 5-axis motion for contouring and complex machining. The trunnion provides +110° and -35° of tilt and 360° of rotation for improved tool clearance and large part capacity, and the 630 x 500 mm table features standard T-slots and a precision pilot bore for fixturing versatility. To simplify job set-up, the UMC-750SS features dynamic work offsets and tool center point control, and comes standard with Haas Automation's wireless intuitive probing system.
The machine's 15,000 RPM inline direct-drive spindle is powered by a 30 HP vector drive system that yields 90 ft-lbs. of cutting torque. The Haas inline system couples the spindle directly to the motor to help reduce heat, increase power transmission and provide excellent surface finishes.
A selection of high-productivity options is available for the UMC-750SS, including a belt-type chip conveyor, high-pressure through-spindle coolant systems, expanded program memory and more.
For more information contact:
Haas Automation, Inc.
2800 Sturgis Road
Oxnard, CA 93030
800-331-6746
www.HaasCNC.com
IMTS Booth S-8119
