New Video Measuring Microscope
August 1, 2014
Mahr Federal will feature the MarVision MM 320, a new video measuring microscope with image processing capability and the flagship product for a new line of Mahr optical measuring instruments.
Designed for the measurement and/or dimensioning of geometric elements, the MarVision MM 320 incorporates an integrated CCD color camera with zoom lens, a 23" touchscreen PC with keyboard and mouse and Windows 7-based M3 software. According to the company, Automatic edge detection allows even low contrast features to be measured, and a Multi Touch function provides quick and continuous variable magnification using either touchscreen or mouse.
"MarVision optical measuring instruments offer a quick and reliable solution to many different 2D measurement and inspection tasks," said George Schuetz, Director Precision Gages for Mahr Federal. "Applications range from cutting tools and precision products for manufacturing, plastics and medical technology, to miniaturized electronic components. These extremely precise measuring instruments are designed to meet the highest quality and production requirements."

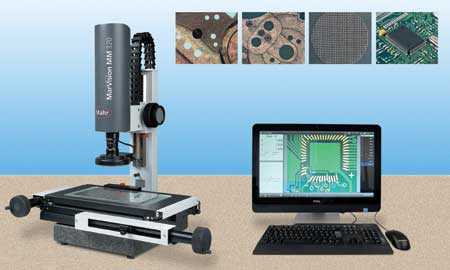

The MarVision MM 320 rests on a hardened granite base with a precision mounted XY table. An optical incremental measuring system offers quick and fine adjustment of the axis, and a laser pointer assists with part positioning. The CCD camera and Navitar Zoom lens with 0.7-4.5x magnification are mounted on a stable Z-column with 200 mm vertical movement. Coarse and fine height adjustment knobs are mounted on both sides for precise focusing. Illumination is provided by a quadrant LED ring top light with four individually controlled segments and table mounted Telecentric LED transmitted light for more focused measurement of rotationally symmetric parts.
Also on display:
- MarCal calipers for a wide range of outside, inside, depth, step and compound measurements
- MarCator digital indicators with MarConnect integrated wireless data transmission system demonstrated on snap gages, bore gages, I.D./O.D. comparators and thickness gages
- New, redesigned MarShaft SCOPE Plus, high-precision, fully automatic optical measuring system for dimensional testing of turned parts
- Two new optical surface measuring systems, the MarSurf WM 100 and MarSurf CWM 100, designed to provide fast non-contact 3D scanning and evaluation of very small to medium sized surface details on a wide range of components, including optics. The systems are designed for the measurement of optical, technical and reflecting surfaces, and to provide 3D topographical analysis where high information density is required, such as printed circuit boards.
For more information contact:
Mahr Federal Inc.
1144 Eddy Street
Providence, RI 02905
800-343-2050 / 401-784-3100
information@mahr.com
www.mahr.com
IMTS 2014 Booth E-5242
