Linear Rotary Motor with Gearbox
August 1, 2014

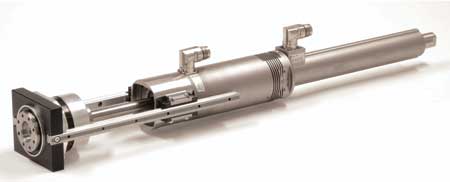

Based on the existing PR01 series, a linear rotary motor has been developed for applications with higher torque requirements of up to 80 Nm.
According to the company, the gearbox also allows precise and dynamic positioning, even for loads with high moment of inertia. A planetary gearset with three transmission ratios that can be specified as needed is designed for tuning and adaptation to the moment of inertia. The linear and rotary motions can be actuated independently of each other or synchronized by a higher level NC controller, depending on the application. The integrated guide rails can be used to support transverse loads at the full stroke of 150 mm. Picking and placing loads outside of the axis of rotation is an application for the new linear rotary motor models.
"Dynamic and freely programmable motion of small dial tables with simultaneous rotational and vertical travel can be implemented easily using this new design element," said a company spokesperson.
For more information contact:
LinMot
204 E Morrissey Dr
Elkhorn, WI 53121
877.546.3270
www.linmotusa.com
IMTS 2014 Booth E-5080
