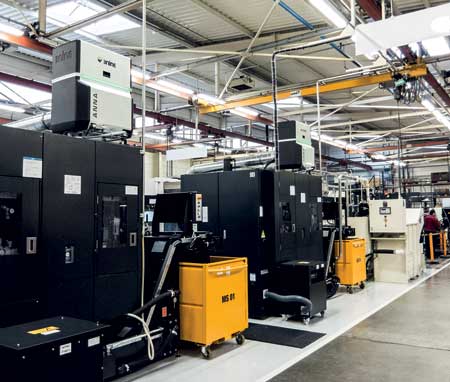

The Anna model in the GREEN LINE series of oil mist separators.
The new GREEN LINE Oil Mist Separators from 3nine will be introduced to the North American market at IMTS. Handling all applications using a coolant or straight oil in the manufacturing process, the GREEN LINE series of oil mist separators are designed to be cost effective and user friendly.
With the new GREEN LINE series, a single rotor and disc size is used for all the separators regardless of the application being performed and works with emulsions or straight oils. For the different air volumes needed to accommodate cabins as they increase in size, additional rotors are added to the separator.
The GREEN LINE series separates 100% of the fluid particulate down to 1 um, 91% at 0.9 um and 82% at 0.75 um. With the HEPA filter for the final stage cleaning, the GREEN LINE series ultimately delivers 99.97% clean air, according to the company.
The GREEN LINE series consists of the Nova, Anna, Lova and Nina units, which develop air flow rates from 176 to 704 cfm. They are designed to handle all types of process applications and work with 99% of the straight oils or coolants on the market.
"On all 3nine separators the CIP ensures that the units are automatically cleaned on a regular basis," said a company spokesperson. "On all the units except for the Nova Basic, the CIP has an enhanced cleaning program where it is cleaned each time the unit is shut down, preventing any particulate build-up. About the only maintenance that needs to be performed is watching for the separator to tell the machine tool operator that it needs to replace the HEPA filter. With the high rate of particle separation in the disc stack, the HEPA filter will only be loaded with the particles smaller than 1 um, thereby providing a long life cycle. The GREEN LINE oil mist separators are equipped with a front and rear easy-to-see LED stripe, so that one can always be informed of its operational status. As an example, when the oil mist separator is running, the LED stripe will shine green and when it is shut off it shines red. When the HEPA filter has around 10 days of life left, the LED stripe will intermittently flash blue for 3 seconds, and when the filter is only working with half its capacity, it will intermittently flash blue for 10 seconds. With the GREEN LINE units, replacing the filter is quick and easy. It can be done while the oil mist separator is running by simply opening a side door, taking out the old and inserting the new."
3nine separators can be mounted directly on top of or on the side of the machine tool. There is also a free standing pedestal for mounting close to the machine tool if necessary. All the units are compact in design.
For more information contact:
3nine USA Inc.
28730 S. River Rd.
Catoosa, OK 74015
918-266-0113
infousa@3nine.com
www.3nine.com
IMTS 2014 Booth N-6285
