New Gear Shaping Machine
August 1, 2014

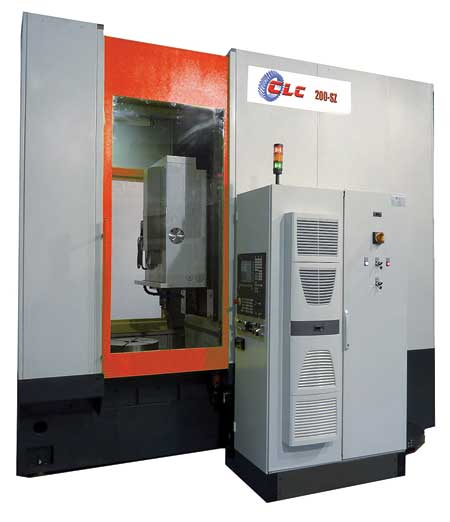

Koepfer America, LLC., will introduce the CLC 200-SZ CNC gear shaping machine at IMTS 2014.
According to the company, CLC has built gear shaping machines for gears up to 118" (3000 mm) diameter; however, the CLC 200-SZ can cut external gears up to 7.874" (200 mm) diameter and has a maximum rating of 5 DP (mn 5.0). The CLC 200-SZ also has standard features such as a CNC electronic guide, stroking speed of 1,000 strokes per minute, a movable cutting head and 3.937" (100 mm) stroke length. The machine can also cut internal gears up to 11.811" (300 mm) diameter.
CLC machines feature a rigid construction for cutting high-precision parts. "These gear shapers can also be customized for a customer's specific application. For example, a tilting column can be provided for cutting tapered gears. Lastly, these machines utilize direct-drive torque motors and optionally, either FANUC or Siemens CNC controls," said a company spokesperson.
The CLC 200-SZ gear shaping machine will be Koepfer America's featured new product at the show, accompanied by a Koepfer Model 160 gear hobbing machine and a Wenzel WGT 400 gear inspection machine.
For more information contact:
Koepfer America LLC
635 Schneider Drive
South Elgin, IL 60177
847-931-4121
www.koepferamerica.com
IMTS 2014 Booth N-6918
