EXSYS Tool, Inc. will exhibit manufacturing technology. Among the products on display will be the PRECI-FLEX modular quick-change tooling system; the compact EPPINGER C3, C4 and C5 connection base holder; DECO-FLEX modular adapters for Swiss automatic machine tools; and modular GRESSEL vises. The company will also highlight its comprehensive EXSYS Tool Repair LLC service that specializes in repairing and rebuilding driven tooling for CNC turning centers.

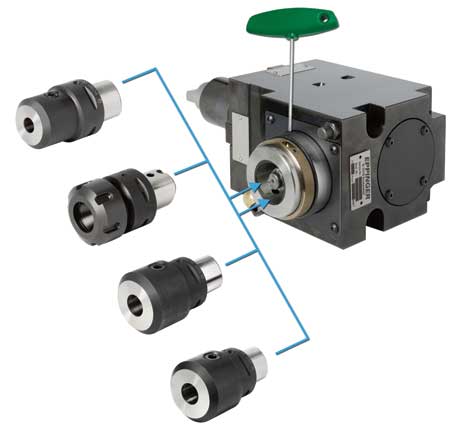

The PRECI-FLEX modular quick-change tooling system features a selection of adapters engineered to hold different cutting tool and shank designs. The adapters' common connecting feature locks into a standard base unit on the machine turret, enabling tool/adapter assemblies to be preset offline and then quickly switched in and out of the base unit. Tool positions repeat within +/- 3 um, eliminating the need to re-center, touch off or make test cuts.

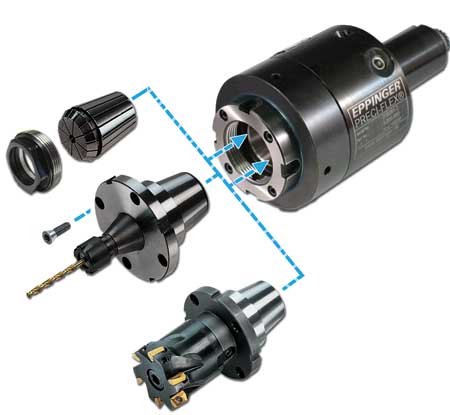

The PRECI-FLEX conical and flat-face planar interface duplicates the taper of the standard ER collet, enabling ER collets, albeit at lesser repeatability, to be used along with PRECI-FLEX adapters to mount collets, endmill holders, expanding collet chucks and shrink fit tooling on a single base holder. Operated at the front face of the turret, the connector provides two tons of clamping force, and its compact design maximizes torque transmission and rigidity, increasing accuracy and productivity, according to the company.
The compact EPPINGER C3, C4 and C5 connection base holder is designed to make fast and simple tool changes possible and requires minimal space within a machine tool so it can handle larger workpieces.
For Swiss automatic machine tools, EXSYS Tool will exhibit DECO-FLEX adapters that have minimal envelope dimensions so they can increase manufacturing flexibility in a Swiss machine environment. The compact design also enhances rigidity, boosting machining efficiency.
The DECO-FLEX connection features a conical and flat-face planar interface designed to provide concentricity and repeatability. The system also offers specific adapters that combine with fixed and/or rotary toolholders to optimize tool performance and flexibility. Tools can be preset off the machine, allowing adapter/tool changes to be completed quickly.
EXSYS will also present three workpiece clamping systems from GRESSEL. According to the company, features include:
- GRIPOS modular machine vises clamp by tension rather than compression, producing no deflection of the vise baseplate, and are gradually and precisely adjustable from 10 to 100% gripping force. Turning a lever 160° provides mechanical amplification with complete clamping in less than a second, minimizing set-up times.
- GREPOS 5-axis power vises feature the same actuation technology as GRIPOS vises and provide force amplification from 0 - 40 kN direct on the workpiece. The design of the vise permits access to both sides as well as the underside of a part, facilitating true 5-axis complete/simultaneous machining.
- SOLINOS modular single-clamping vises for small workpieces feature interchangeable jaws and are offered in mechanical or hydraulic versions, providing clamping force up to 20 kN. Clamping range is adjustable without jaw removal, enabling quick changeovers between different parts. The vises can be directly integrated into pallets.
EXSYS will also highlight its EXSYS Tool Repair LLC service that specializes in rebuilding driven tooling for CNC turning centers. EXSYS is factory authorized to service EPPINGER tooling and, according to the company, is also fully capable of repairing or rebuilding virtually every make and model of driven tools to OEM specifications.
For more information contact:
EXSYS Tool, Inc.
11654 Corporate Lake Blvd.
San Antonio, FL 33576
800-397-9748
info@exsys-tool.com
www.exsys-tool.com
IMTS 2014 Booth W-1671
